Description

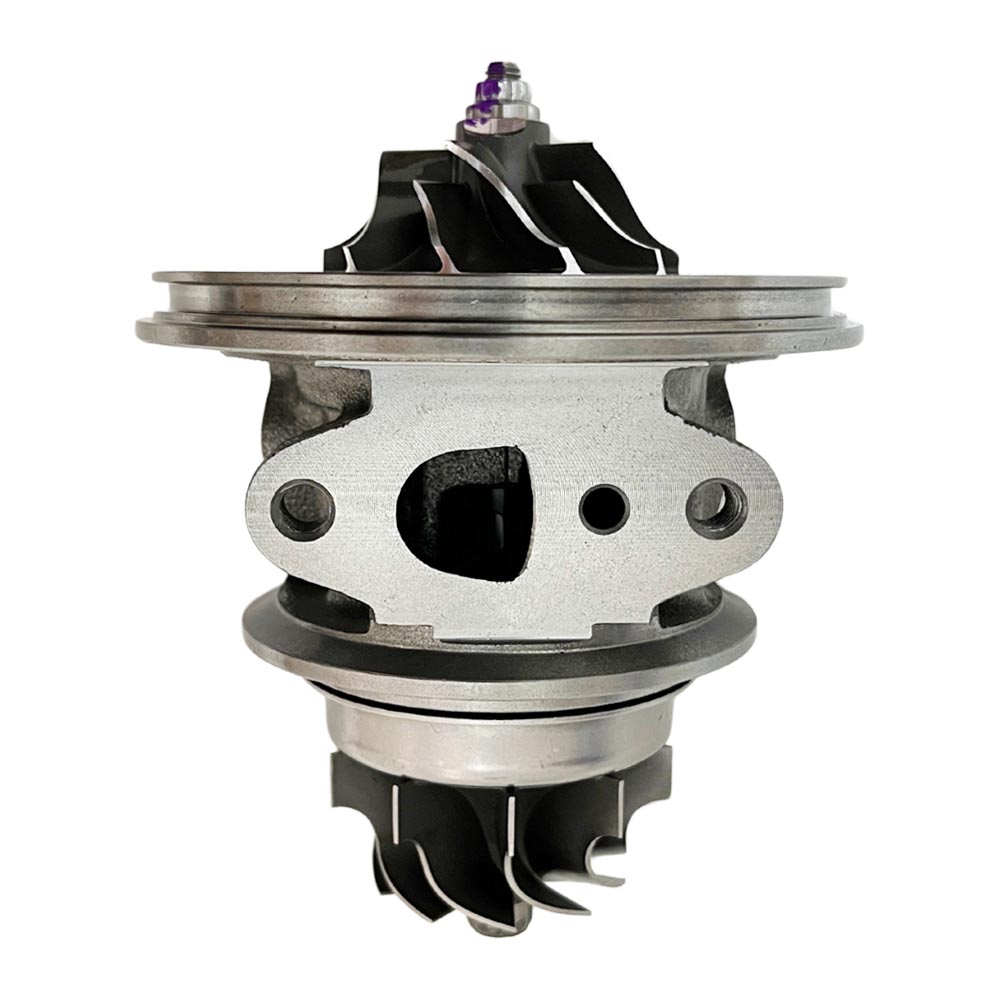

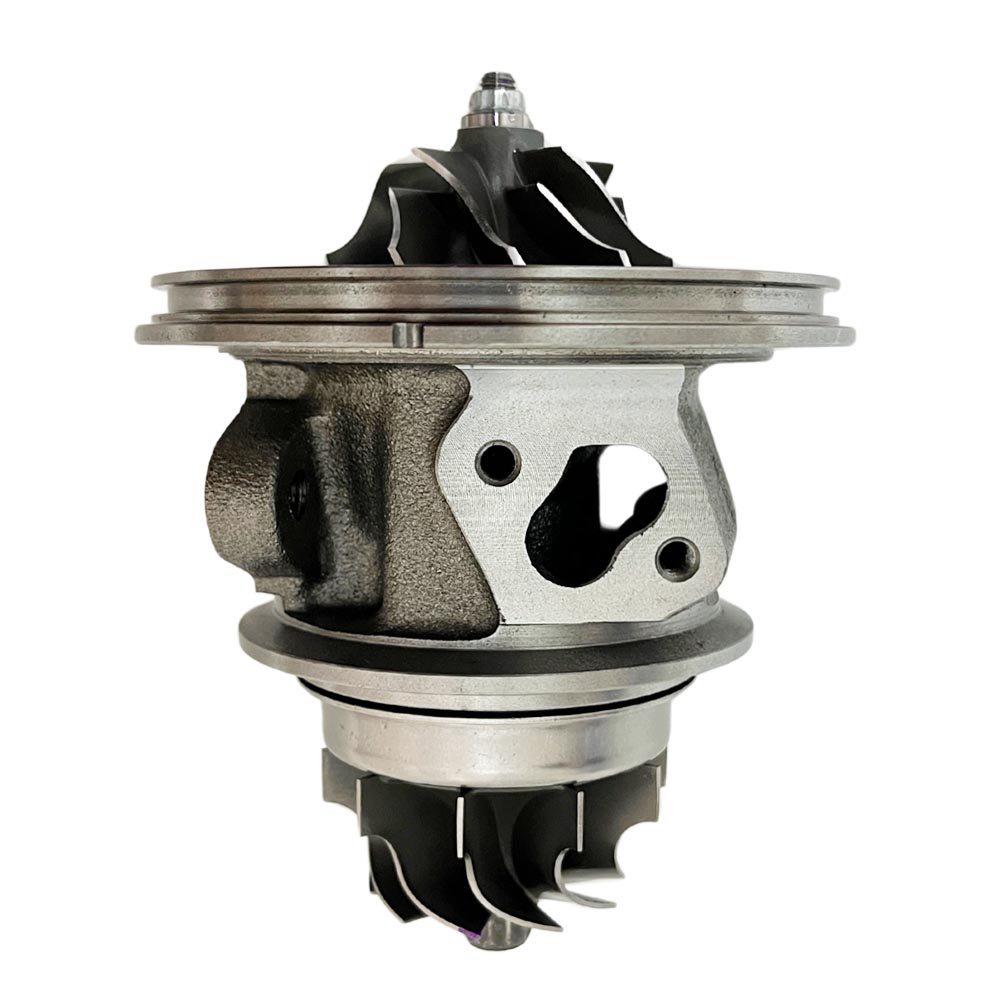

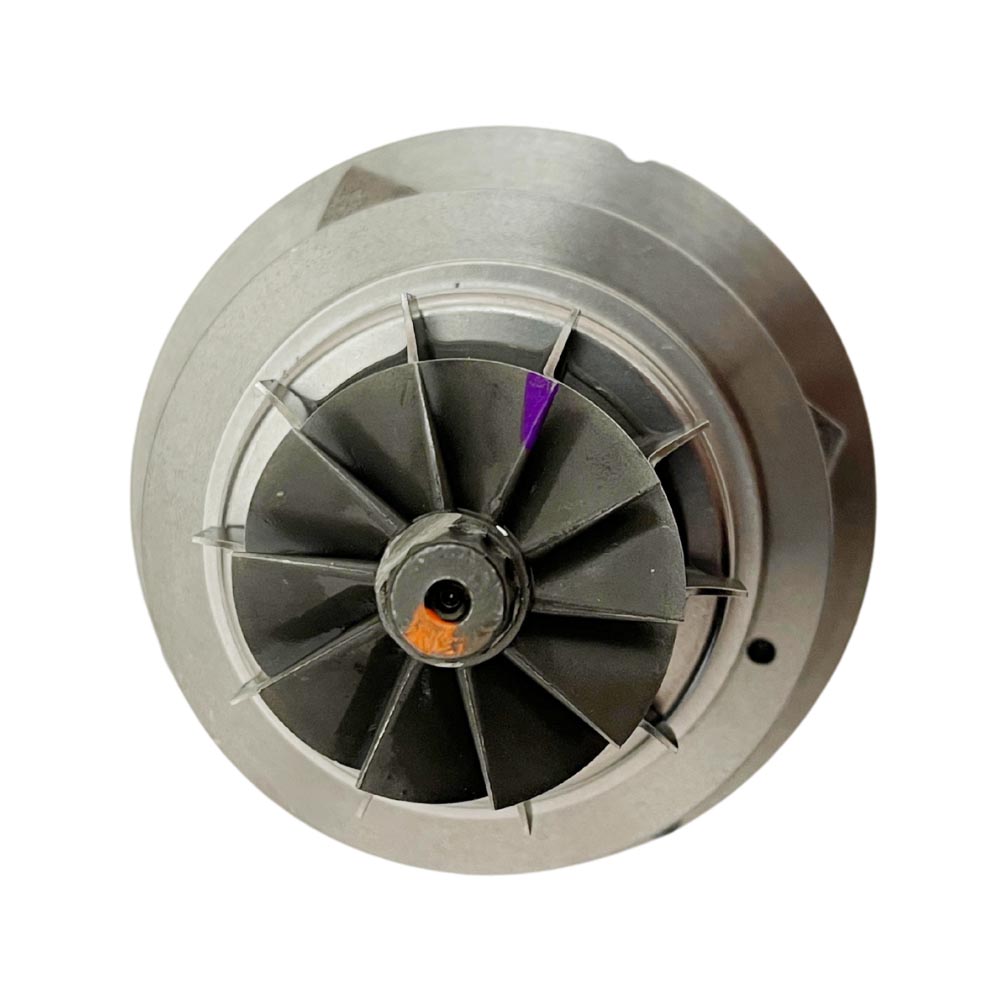

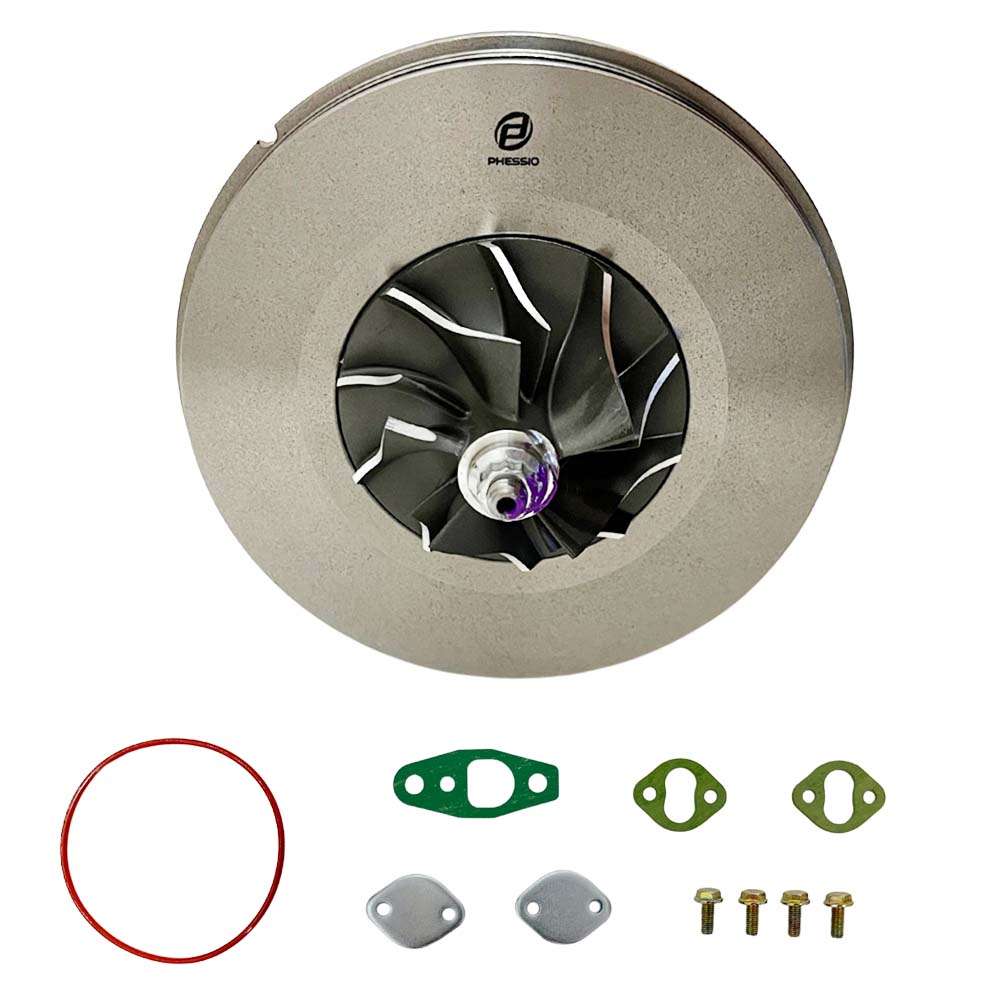

Quality Aftermarket Turbocharger Cartridge – Direct Replacement for 17202-54066
When your Toyota 2L-T turbocharger cartridge goes bad, the easiest, most budget-friendly way to get your Hiace, Hilux or Land Cruiser back on the road is to replace only the cartridge. Our aftermarket 17202-54066 cartridge delivers OEM-level performance and reliability without the premium price tag. Each unit undergoes rigorous quality checks, including dimensional inspection and balanced‐assembly testing, ensuring you receive a part that meets or exceeds factory specs.
Fitment & Compatibility
| Vehicle Model | Engine | Years | OEM Turbo PN | OEM Cartridge PN |
|---|---|---|---|---|
| Toyota Hiace | 2L-T 2.4TD | 1995-2006 | 17201-54060 | 17202-54066 |
| Toyota Hilux | 2L-T 2.4TD | 1985–2006 | 17201-54060 | 17202-54066 |
| Toyota Land Cruiser | 2L-T 2.4TD | 1985-1996 | 17201-54060 | 17202-54066 |
Why Choose Our Cartridge?
Direct Fit, OE-Equivalent
Direct bolt-in replacement for OEM cartridge 17202-54066. Seamlessly integrates into existing turbo housings—no modifications required
Precision-Balanced Assembly
Each cartridge is dynamically balanced on high-speed turbo spindles to minimize vibration and extend bearing life, delivering smooth boost response and long service life.
Premium Shaft and Wheel Materials
Hot-section components turbine wheels are crafted from Inconel K418 alloy for superior heat resistance and strength under high exhaust gas temperatures. Never use cheap K713C!
Robust Bearings & Seals
Utilizes heavy-duty, oil-cooled journal bearings with reinforced seals to prevent oil leakage and ensure reliable lubrication under all operating conditions.

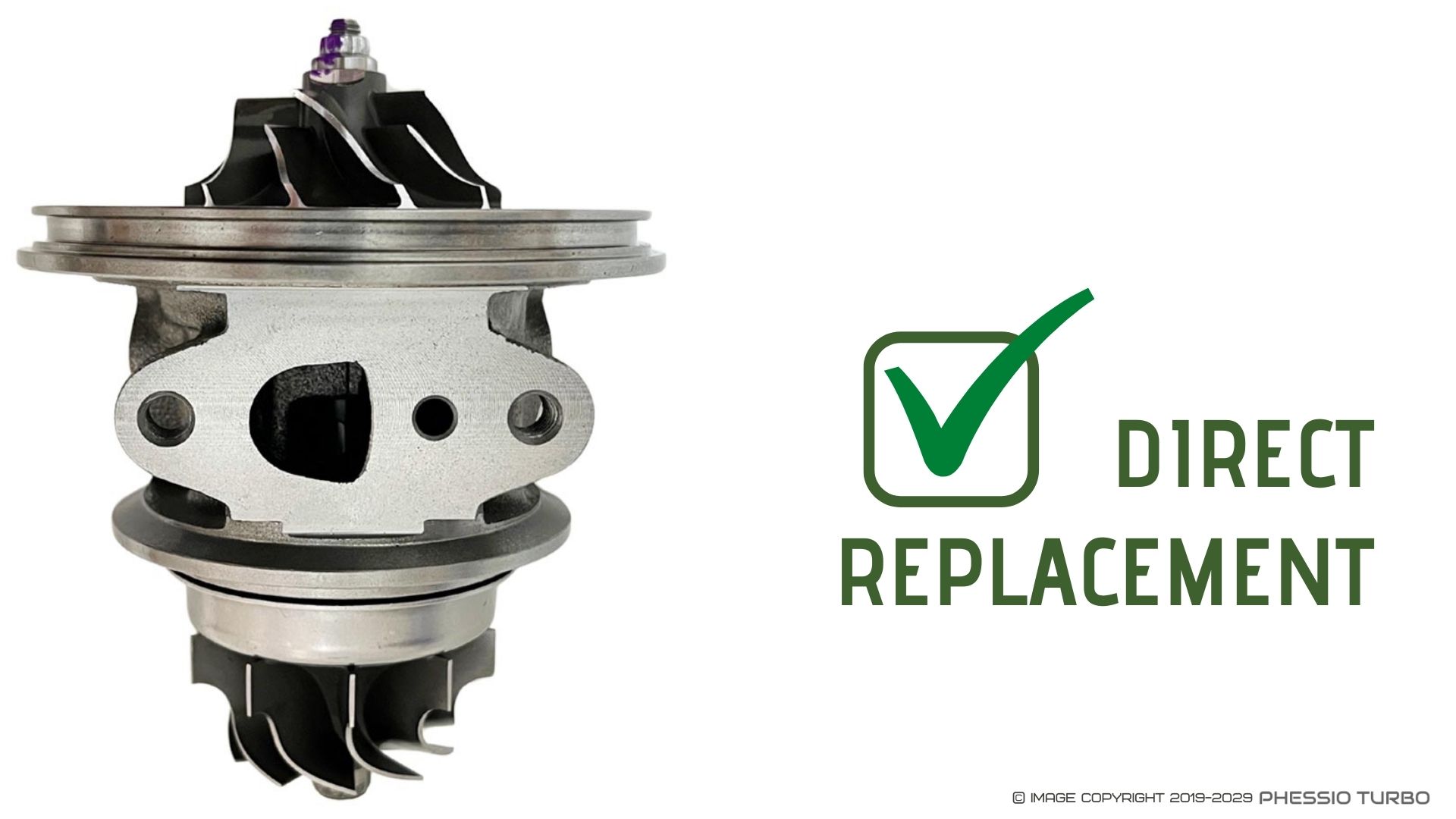

DIRECT REPLACEMENT
Exact fit, direct replacement of the original turbocharger cartridge, fast and easy installation, don’t need to do any change.

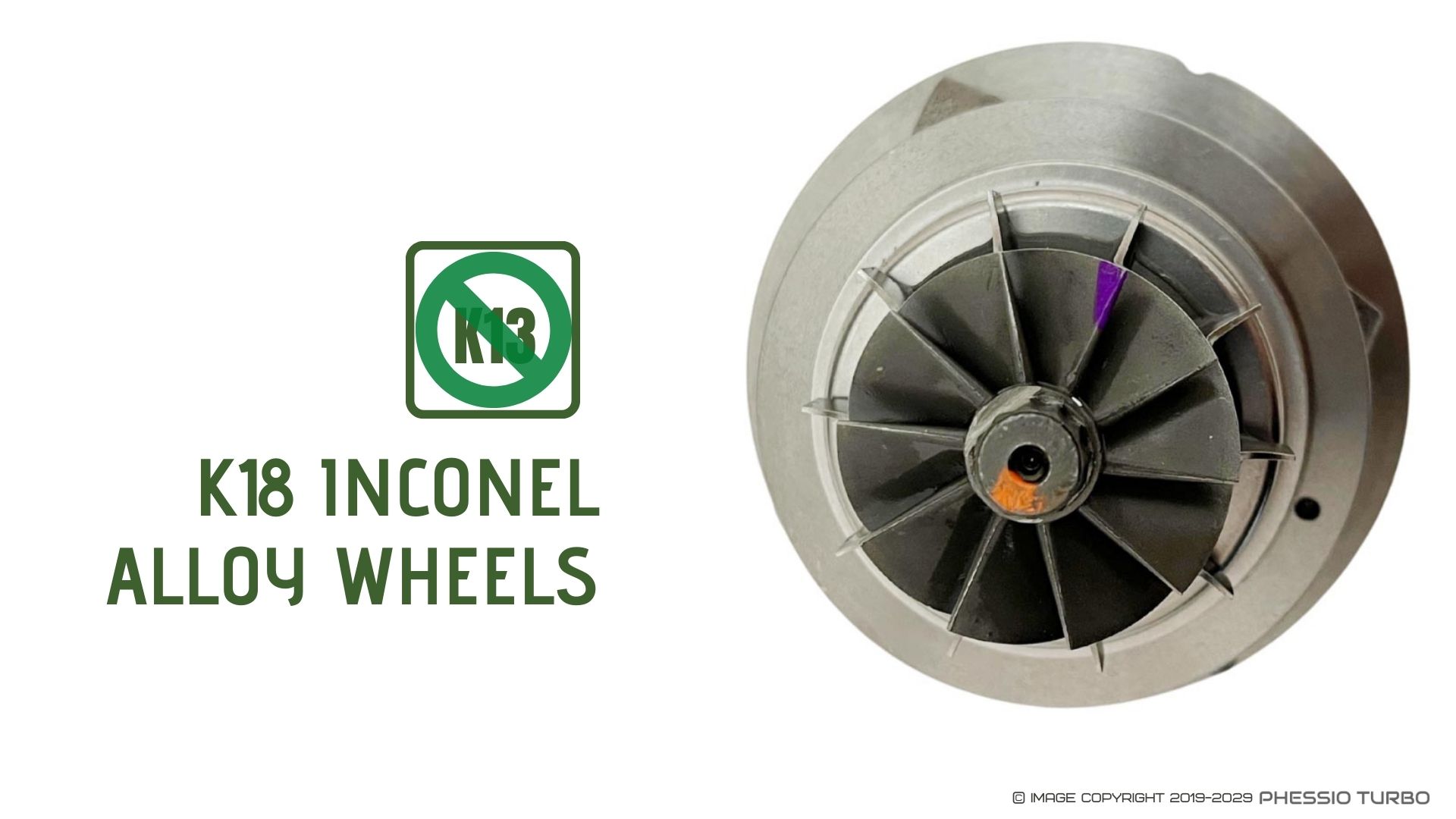

K18 INCONEL WHEELS
The turbine shaft wheels made of K418 high nickel casting alloy, more heat resistance, never use K13 Inconel alloy.
100% Balancing TEST
ISO certified factory, never compromise in balancing test, minutely inspected in the whole manufacturing process.

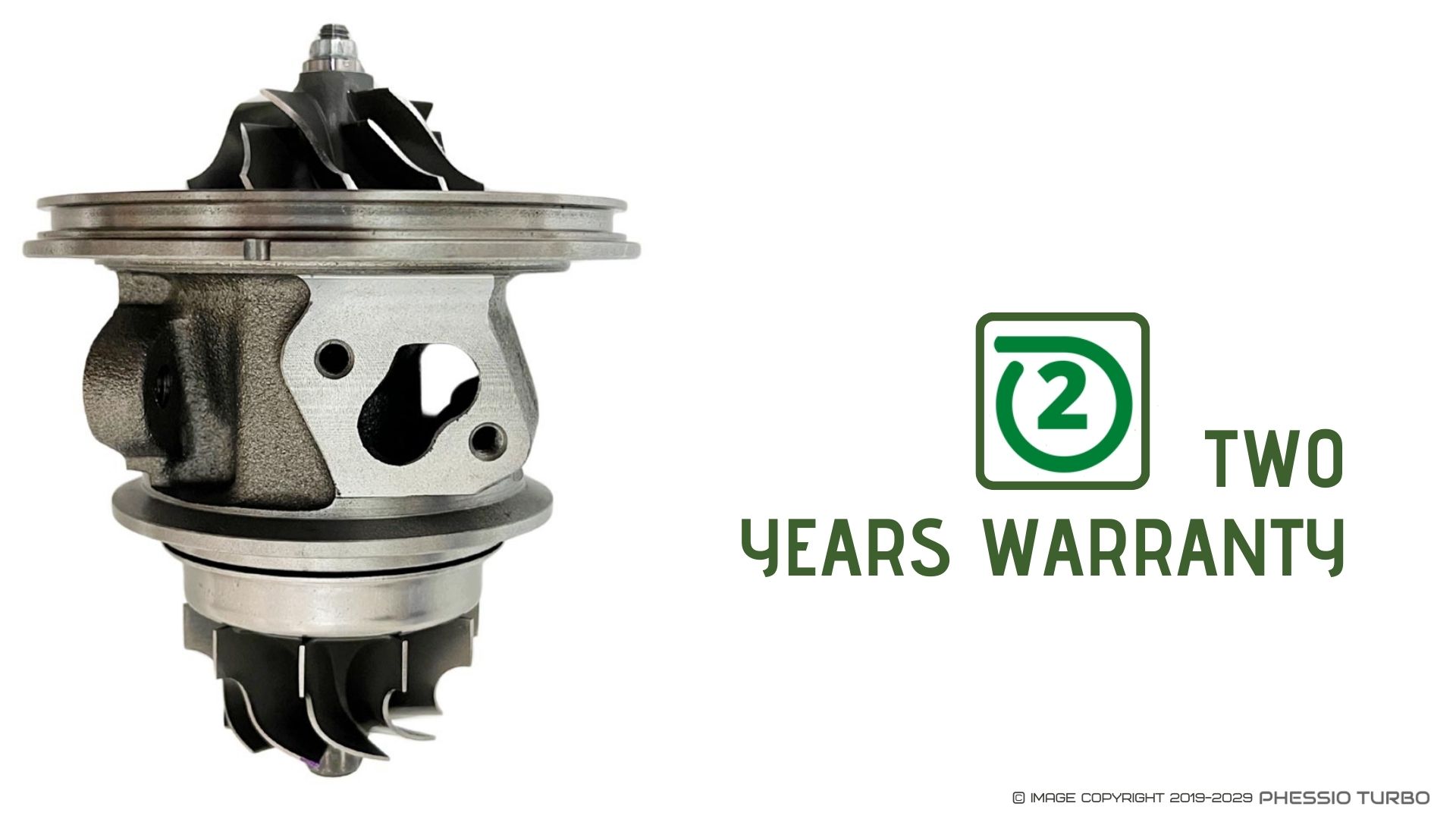

2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
| Make | Model | Year | Engine | CC | KW |
|---|---|---|---|---|---|
| TOYOTA | HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 D (LXH12_, LXH22_) | 1995-2001 | 2L | 2438ccm | 58kW 79HP |
| TOYOTA | HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD (LXH12_, LXH22_) | 1995-2006 | 2L-T | 2438ccm | 66kW 90HP |
| TOYOTA | HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD 4WD (LXH18_, LXH28_) | 1995-2006 | 2L-T | 2438ccm | 66kW 90HP |
| TOYOTA | HIACE IV Bus (_H1_, _H2_) 2.4 D (LXH12_) | 1999-2006 | 2L | 2446ccm | 55kW 75HP |
| TOYOTA | HIACE IV Bus (_H1_, _H2_) 2.4 TD (LXH12_, LXH22_) | 1995-2006 | 2L-T | 2446ccm | 66kW 90HP |
| TOYOTA | HIACE IV Bus (_H1_, _H2_) 2.4 TD 4WD (LXH18_, LXH28_) | 1995-2006 | 2L-T | 2446ccm | 66kW 90HP |
| TOYOTA | HILUX VI Pickup (_N1_) 2.4 TD 4WD (LN165_, LN170_, LN190_) | 1998-2002 | 2L-T | 2446ccm | 66kW 90HP |
| TOYOTA | LAND CRUISER (_J7_) 2.4 TD (LJ70_, LJ73_) | 1985-1990 | 2L-T | 2429ccm | 63kW 86HP |
| TOYOTA | LAND CRUISER (_J7_) 2.4 TD (LJ70) | 1990-1993 | 2L-T | 2446ccm | 66kW 90HP |
| TOYOTA | LAND CRUISER Hardtop (_J7_) 2.4 TD (LJ70_) | 1990-1996 | 2L-T | 2446ccm | 66kW 90HP |
|
*Please make sure it is the correct cartridge for your turbo before buying. You can also contact us with your vin number and we will be more than happy to help you to verify it. |
|||||
