Description
Quality Aftermarket Direct Replacement Turbo Cartridge 703890-0034
This aftermarket turbocharger cartridge is engineered as a direct replacement for the original OE 703890-0034 turbo cartridge. It is designed to fit a wide range of Garrett GT1749V, GT1749MV, and GTA1749MV turbochargers used on 1.9 TDI and 2.0 TDI diesel engines.
The cartridge is manufactured to OE-equivalent dimensions to ensure correct fitment, oil flow, and shaft clearances. It is supplied as a complete, pre-assembled rotating assembly, making it ideal for turbocharger rebuilds where the turbine and compressor housings remain serviceable.
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| Garrett | GT1749V | 712078-0001 | 038253016F, 038253016FX |
| Garrett | GT1749V | 716216-0001 | 038253016F, 038253016FX |
| Garrett | GT1749V |
716860-0001, 716860-5001S 716860-0002, 716860-5002S 716860-0003, 716860-5003S 716860-0004, 716860-5004S 716860-0005, 716860-5005S, 716860-9005W |
038253016E, 038253016EV500 038253016F, 03G253016Q |
| Garrett | GT1749V / GTA1749MV |
720855-0001, 720855-5001S 720855-0002, 720855-5002S 720855-0003, 720855-5003S 720855-0004, 720855-5004S 720855-0005, 720855-5005S 720855-0006, 720855-5006S, 720855-5006U 720855-0007, 720855-5007S, 720855-9007S |
038253016E, 038253016F 038253016FV115, 038253016FV500, 038253016FV510 03G253016Q |
| Garrett | GT1749MV / GTA1749MV |
724930-0002, 724930-5002S 724930-0003, 724930-5003S 724930-0004, 724930-5004S 724930-0006, 724930-5006S 724930-0008, 724930-5008S 724930-0009, 724930-5009S 724930-0010, 724930-5010S 724930-0012, 724930-5012S |
03G253019A, 03G253019AV550 03G253014H, 03G253010J |
| Garrett | GT1749V / GTA1749MV |
756062-0001, 756062-5001S 756062-0002, 756062-5002S 756062-0003, 756062-5003S 756062-0003-R 756062-0004, 756062-5004S, 756062-9004S 756062-9003S |
03G253019HV100 03G253014J 03G253010H MN980201 |
Technical Specifications
CHRA No.: 703890-0034, 703890-5034S, 703890-34

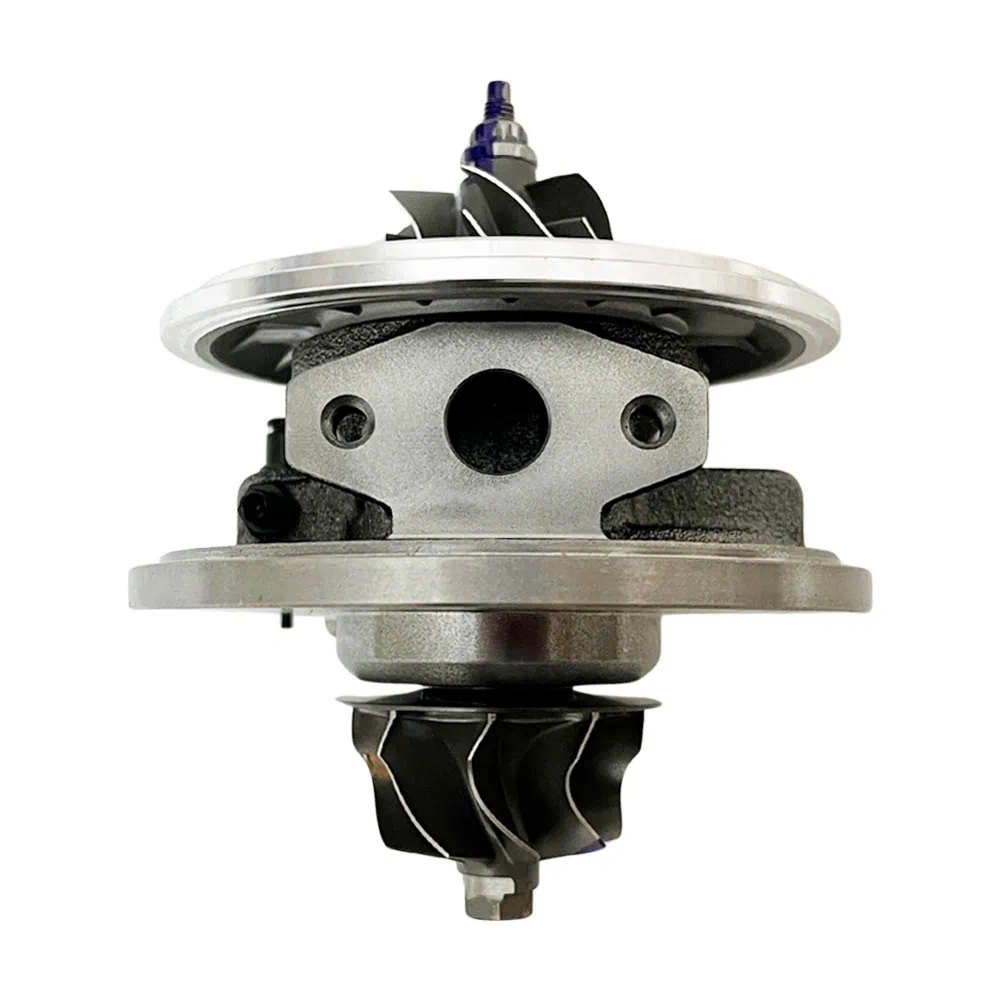

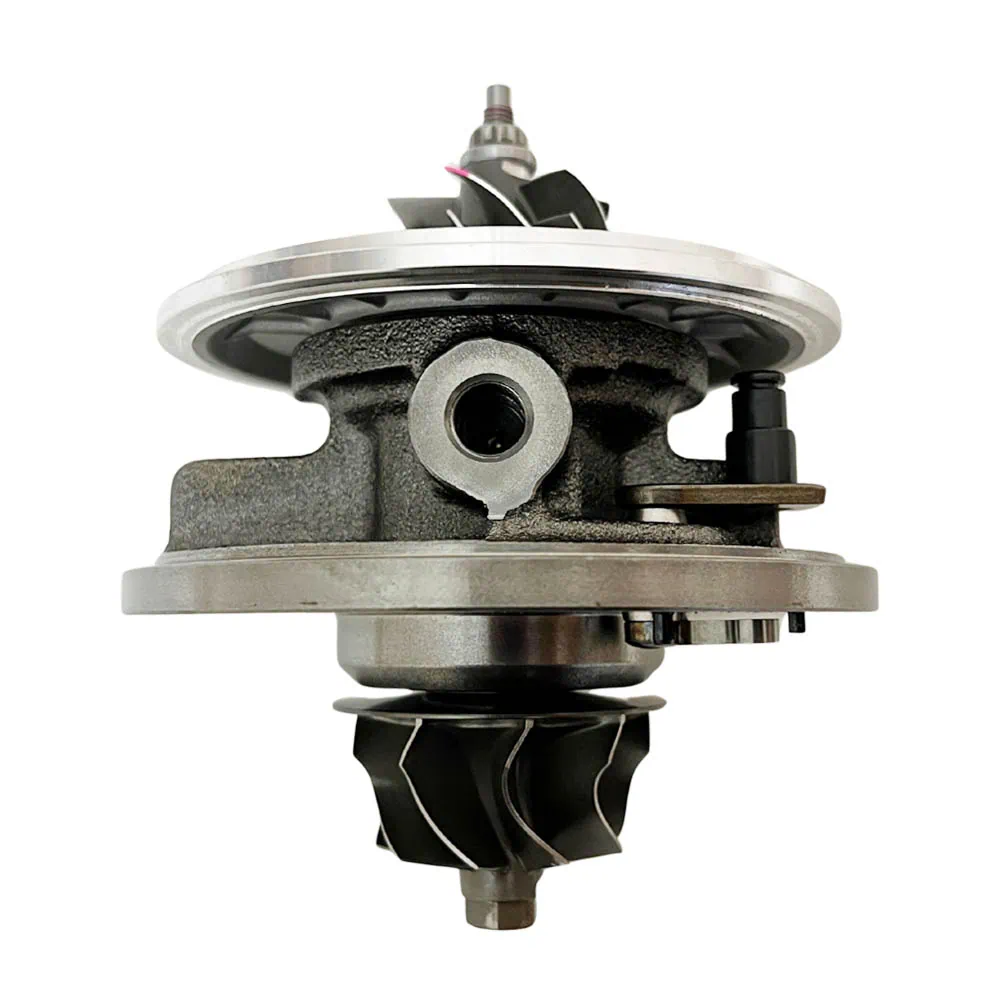

Interchanges: 703890-0060, 703890-0123, 703890-0127, 703890-0148, 703890-0160, 703890-60, 703890-123, 703890-127, 703890-148, 703890-160
Compatibility & Fitment
AUDI
A3
-
2000–2003 AUDI A3 (8L1) 1.9 TDI with ASZ engine; 96kW 130HP
-
2000–2003 AUDI A3 (8L1) 1.9 TDI quattro with ASZ engine; 96kW 130HP
-
2003–2012 AUDI A3 (8P1) 2.0 TDI with BKD, CLJA, CFFB, CBEA, CBAB engine; 103kW 140HP
-
2003–2012 AUDI A3 (8P1) 2.0 TDI with AZV, CFFA, CBAA engine; 100kW 136HP
-
2003–2008 AUDI A3 (8P1) 2.0 TDI quattro with AZV engine; 100kW 136HP
-
2004–2012 AUDI A3 (8P1) 2.0 TDI quattro with BKD, CFFB, CBAB engine; 103kW 140HP
A3 Sportback
-
2004–2013 AUDI A3 Sportback (8PA) 2.0 TDI with BKD, CLJA, CFFB, CBEA, CBAB engine; 103kW 140HP
-
2004–2013 AUDI A3 Sportback (8PA) 2.0 TDI with AZV, CFFA, CBAA engine; 100kW 136HP
-
2005–2013 AUDI A3 Sportback (8PA) 2.0 TDI quattro with BKD, CFFB, CBAB engine; 103kW 140HP
SEAT
LEON
-
2003–2006 SEAT LEON (1M1) 1.9 TDI with ASZ engine; 96kW 130HP
-
2005–2012 SEAT LEON (1P1) 2.0 TDI with BKD, CFHC, CLCB engine; 103kW 140HP
-
2005–2010 SEAT LEON (1P1) 2.0 TDI with AZV engine; 100kW 136HP
TOLEDO
-
2003–2006 SEAT TOLEDO II (1M2) 1.9 TDI with ASZ engine; 96kW 130HP
-
2004–2009 SEAT TOLEDO III (5P2) 2.0 TDI with BKD engine; 103kW 140HP
-
2004–2009 SEAT TOLEDO III (5P2) 2.0 TDI with AZV engine; 100kW 136HP
VW
GOLF
-
2000–2006 VW GOLF IV (1J1, 1J5) 1.9 TDI with ASZ engine; 96kW 130HP
-
2003–2008 VW GOLF V (1K1) 2.0 TDI with BKD engine; 103kW 140HP
-
2003–2008 VW GOLF V (1K1) 2.0 TDI with AZV engine; 100kW 136HP
-
2004–2008 VW GOLF V (1K1) 2.0 TDI 4Motion with BKD engine; 103kW 140HP
DODGE
CALIBER
-
2006–2011 DODGE CALIBER 2.0 CRD with ECD, ECE engine; 88–103kW 120–140HP
CHRYSLER
SEBRING
-
2007–2010 CHRYSLER SEBRING (JS) 2.0 CRD with ECD engine; 103kW 140HP
-
2007–2010 CHRYSLER SEBRING Convertible (JS) 2.0 CRD with ECD engine; 103kW 140HP
MITSUBISHI
GRANDIS
-
2005–2010 MITSUBISHI GRANDIS (NA_W) 2.0 DI-D with BSY engine; 100kW 136HP
-
2007–2010 MITSUBISHI GRANDIS (NA_W) 2.0 DI-D with BWC engine; 103kW 140HP
OUTLANDER
-
2006–2012 MITSUBISHI OUTLANDER II (CW_W) 2.0 DI-D with BSY engine; 103kW 140HP
Why Choose Our Cartridge?
Direct-fit CHRA
Designed for straightforward installation, fits seamlessly into your original turbo housing, allowing for a hassle-free replacement.
100% Dynamically Balanced
Each cartridge undergoes rigorous balancing tests to guarantee smooth, vibration‑free operation at high RPM.
Premium Shaft and Wheel Materials
Turbine wheels are made from Inconel K418 alloy, Never use cheap K713C!
Robust Bearings & Seals
Heavy-duty oil-cooled bearings with reinforced seals for leak-free, reliable lubrication.
DIRECT REPLACEMENT
Exact fit, direct replacement of the original turbocharger cartridge, fast and easy installation, don’t need to do any change.
K18 INCONEL WHEELS
The turbine shaft wheels made of K418 high nickel casting alloy, more heat resistance, never use K13 Inconel alloy.
100% Balancing TEST
ISO certified factory, never compromise in balancing test, minutely inspected in the whole manufacturing process.
2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
Please make sure it is the right cartridge for your turbo before you buy. If you are not sure if this chra will fit your turbo please contact us with your vin number and we will be more than happy to help you to verify it.
