Description

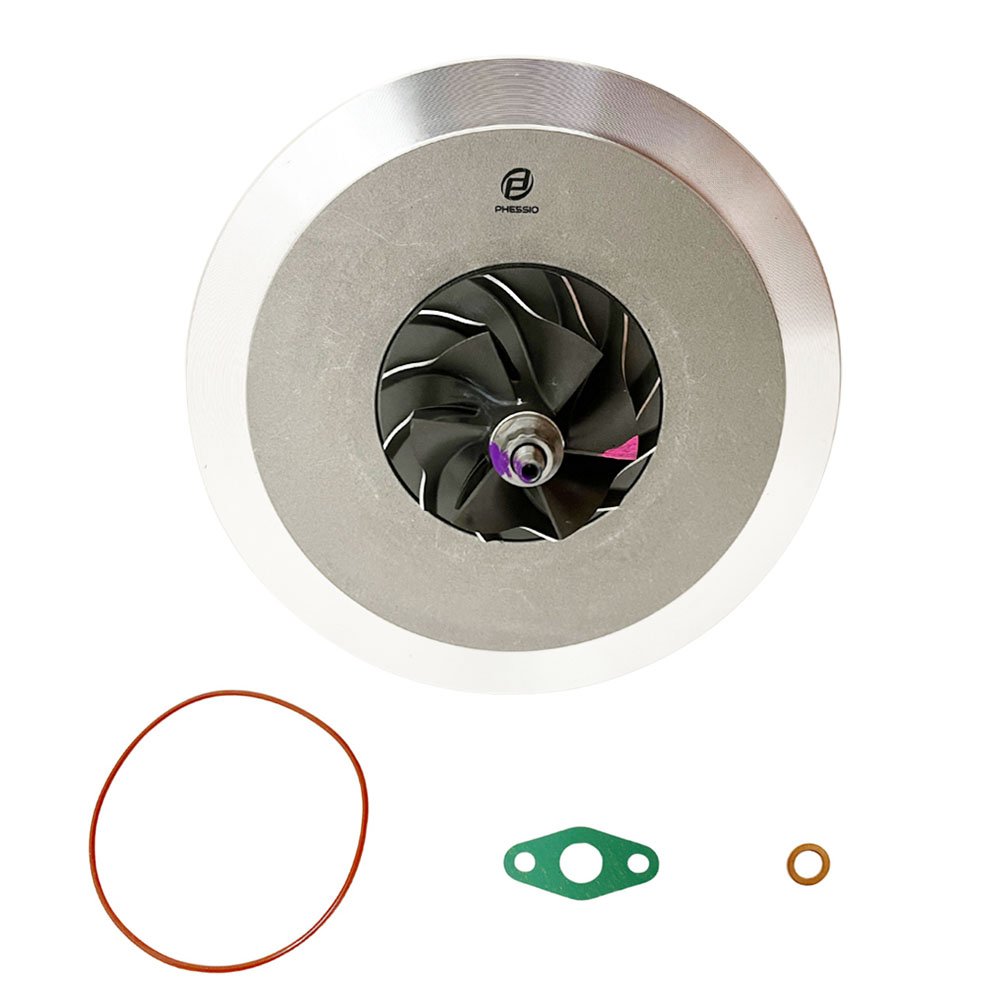

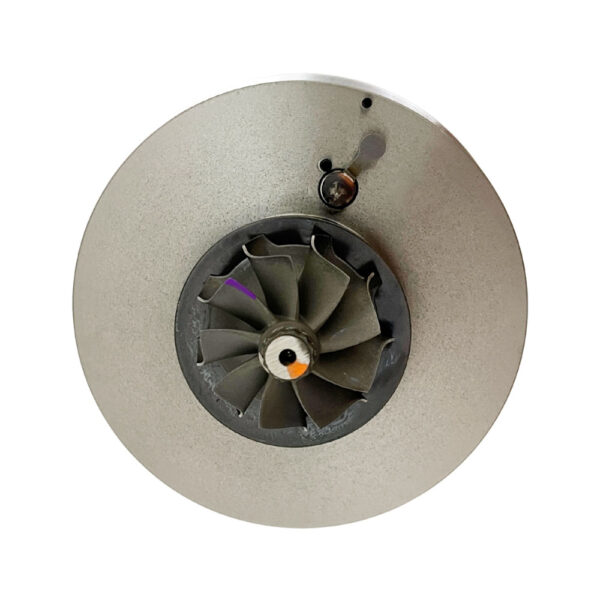

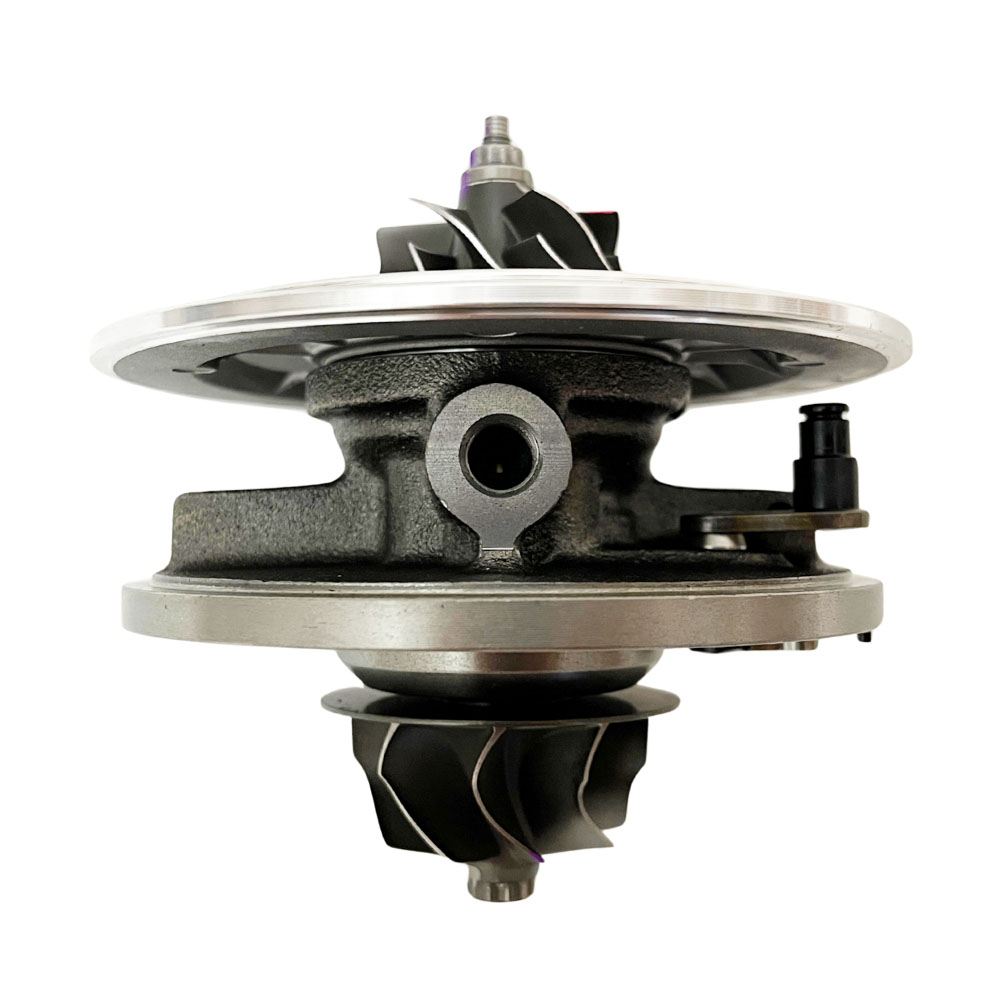

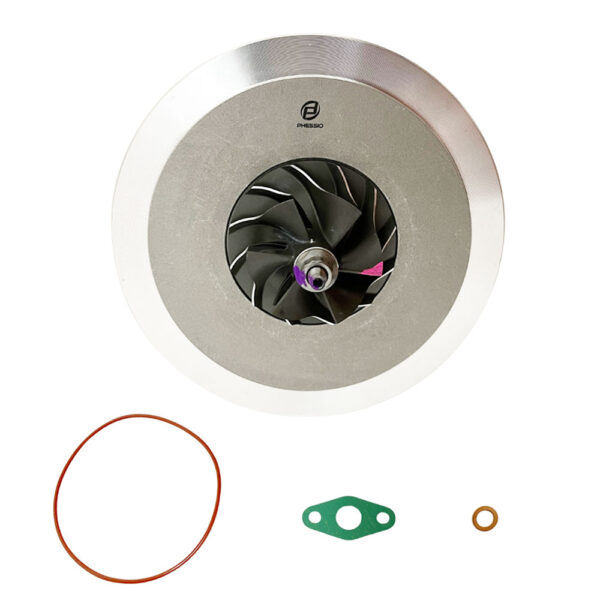

703891-0012 Turbo CHRA – Direct Replacement for GTA2052V Turbo 710415-0001 / OE 11657781435
Restore lost boost and power with our 703891-0012 turbo CHRA, engineered as a direct replacement core for the original GTA2052V turbocharger (Garrett 710415-0001, OE 11657781435). If your original turbo’s core is damaged or worn out, this replacement CHRA offers a cost-effective solution to get your engine running at full performance again — without replacing the entire turbo.
Technical Specifications
| Specification | Detail |
|---|---|
| CHRA No. | 703891-0012, 703891-5012S |
| Turbo Model | GTA2052V |
| Part Numbers | 710415, 710415-0001, 710415-5003S, 710415-5007S, 710415-0007, 710415-5001S, 710415-0003 |
| OEM Codes | 11657781435, 11657781434, 11657780199, 5860006, 7781434, 7781435, 7781436, 93171646, R1630020, 7780199D, 860049, 93184500 |
| Engine | BMW M57 D25 (256D1); Opel Y25TD, Y25DT |
Vehicle Compatibility
BMW
2000-2003 BMW 5 (E39) 525 d with M57 D25 (256D1) engine; 120kW 163HP
2000-2003 BMW 5 Touring (E39) 525 d with M57 D25 (256D1) engine; 120kW 163HP
Opel
2001-2003 OPEL OMEGA B (V94) 2.5 DTI (F69, M69, P69) with Y 25 TD, Y 25 DT engine; 110kW 150HP
2001-2003 OPEL OMEGA B Estate (V94) 2.5 DTI (F35, M35, P35) with Y 25 TD, Y 25 DT engine; 110kW 150HP
Why Choose Our Cartridge?
Direct-fit CHRA
Easy installation into your original turbo housing.
100% Dynamically Balanced
Each cartridge undergoes rigorous balancing tests to guarantee smooth, vibration‑free operation at high RPM.
Premium Shaft and Wheel Materials
Turbine wheels are made from Inconel K418 alloy, Never use cheap K713C!
Robust Bearings & Seals
Heavy-duty oil-cooled bearings with reinforced seals for leak-free, reliable lubrication.

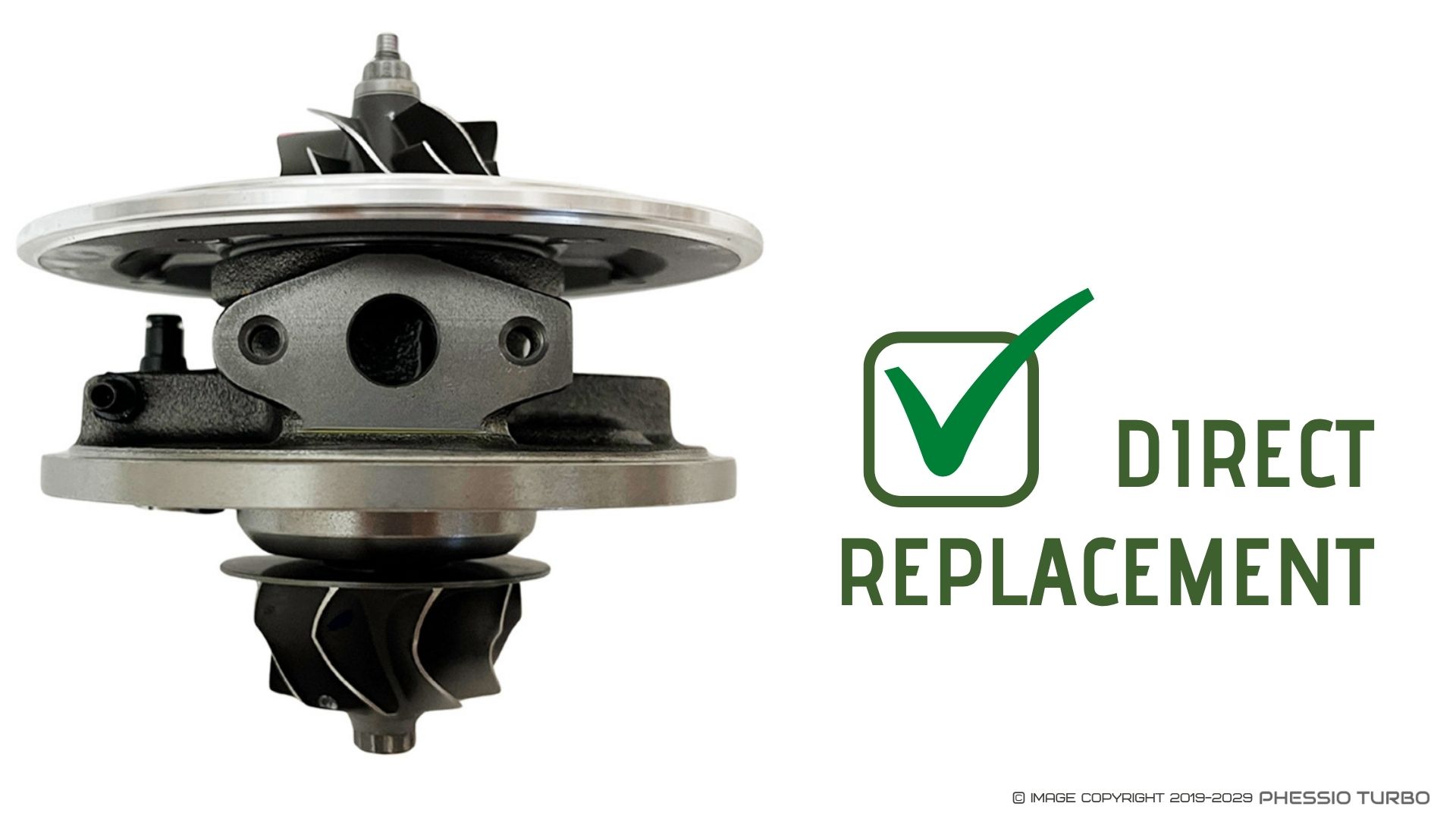

DIRECT REPLACEMENT
Exact fit, direct replacement of the original 703891-0012 turbo CHRA, fast and easy installation, don’t need to do any change.

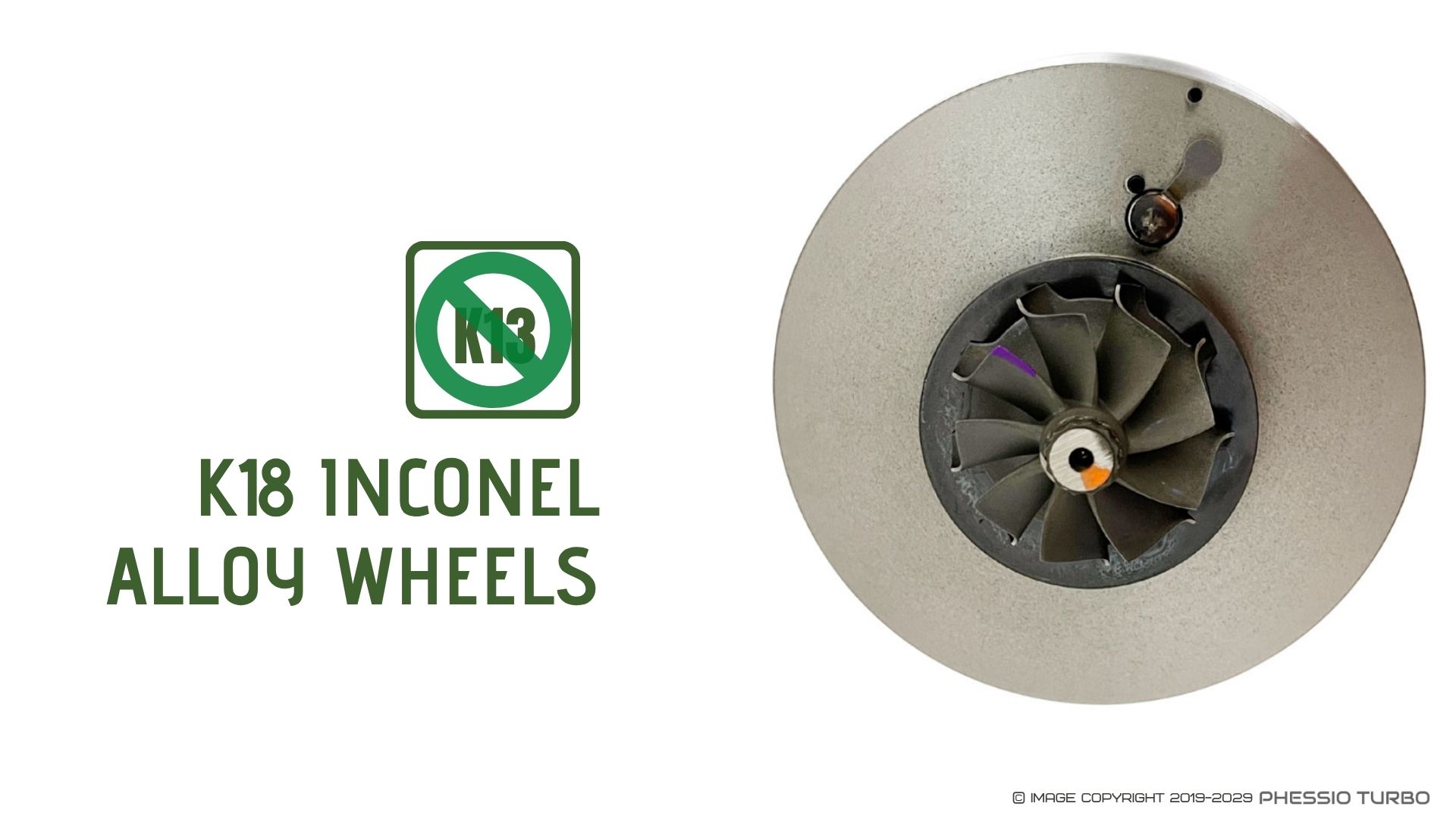

K18 INCONEL WHEELS
The turbine shaft wheels made of K418 high nickel casting alloy, more heat resistance, never use K13 Inconel alloy.
100% Balancing TEST
ISO certified factory, never compromise in balancing test, minutely inspected in the whole manufacturing process.

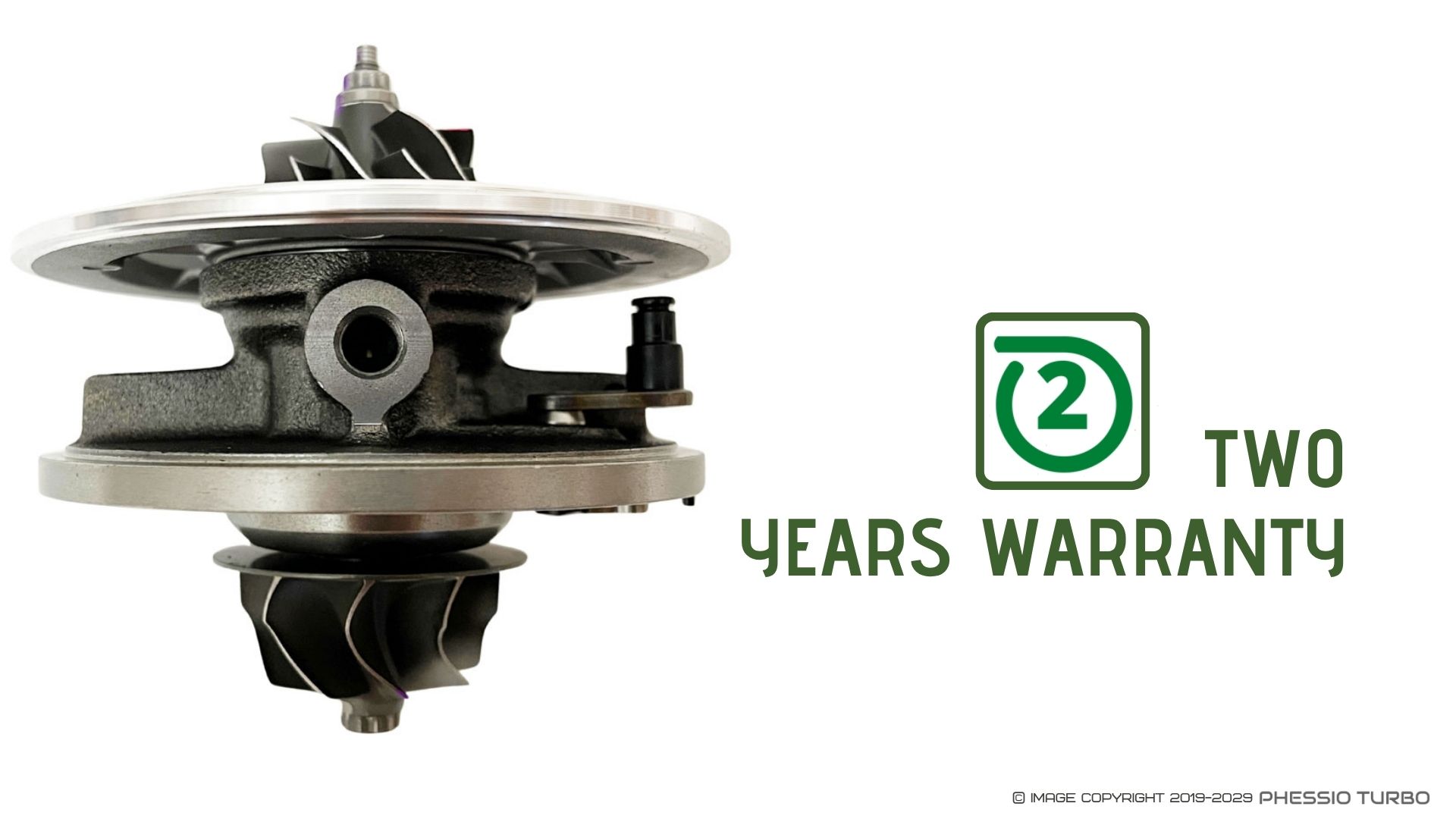

2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
| Make | Model | Year | Engine | CC | KW |
|---|---|---|---|---|---|
| BMW | 5 (E39) 525 d | 2000-2003 | M57 D25 (256D1) | 2497ccm | 120kW 163HP |
| BMW | 5 Touring (E39) 525 d | 2000-2003 | M57 D25 (256D1) | 2497ccm | 120kW 163HP |
| OPEL | OMEGA B (V94) 2.5 DTI (F69, M69, P69) | 2001-2003 | Y 25 TD, Y 25 DT | 2497ccm | 110kW 150HP |
| OPEL | OMEGA B Estate (V94) 2.5 DTI (F35, M35, P35) | 2001-2003 | Y 25 TD, Y 25 DT | 2497ccm | 110kW 150HP |
|
*Please make sure it is the correct chra for your turbo before buying. You can also contact us with your vin number and we will be more than happy to help you to verify it. |
|||||
