794081-51 Vacuum Actuator with 787563-08 Position Sensor For OEM 04L253010H, 04L253010EV

-25%

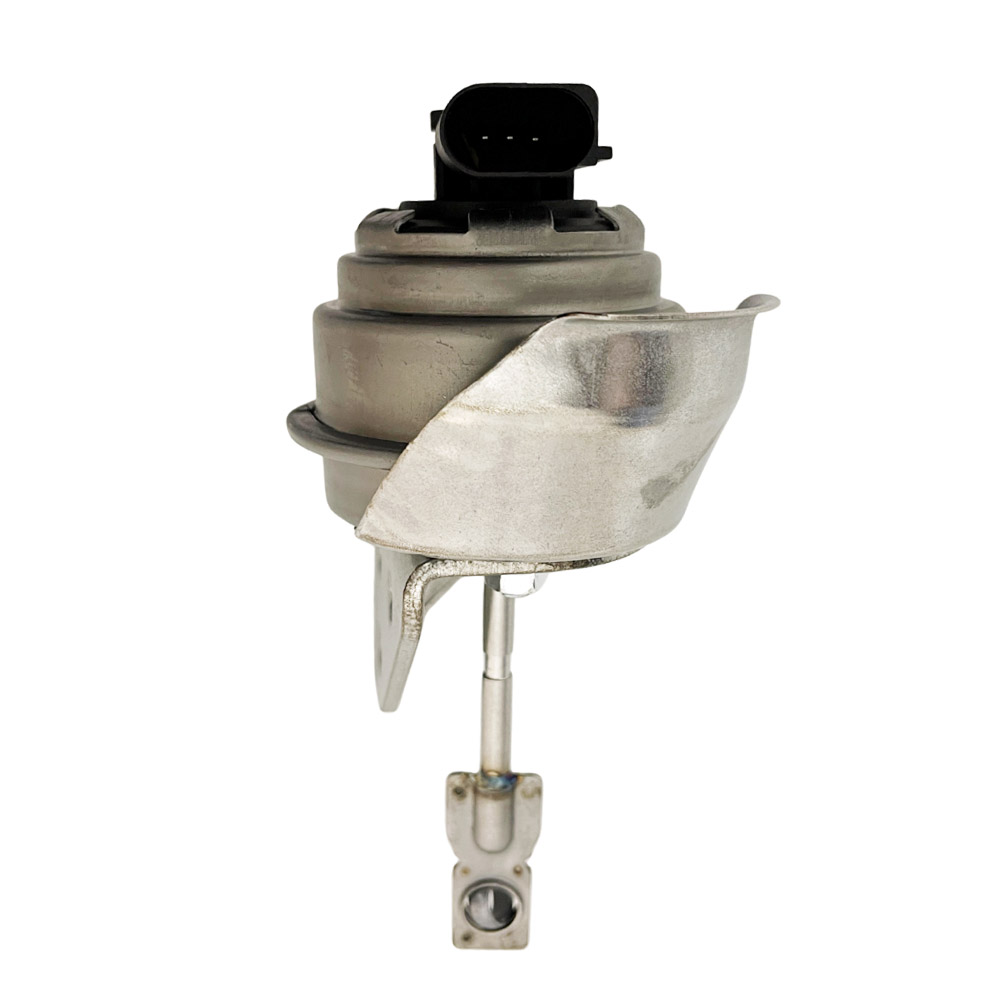

vacuum actuator 794081-51

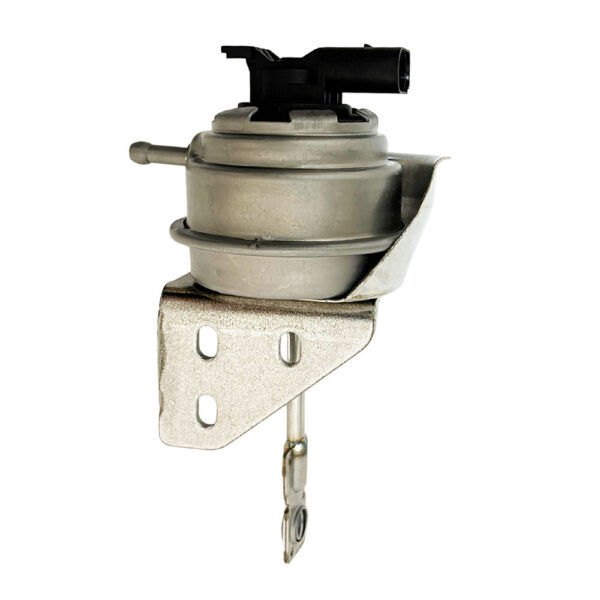

787563-08 position sensor actustor

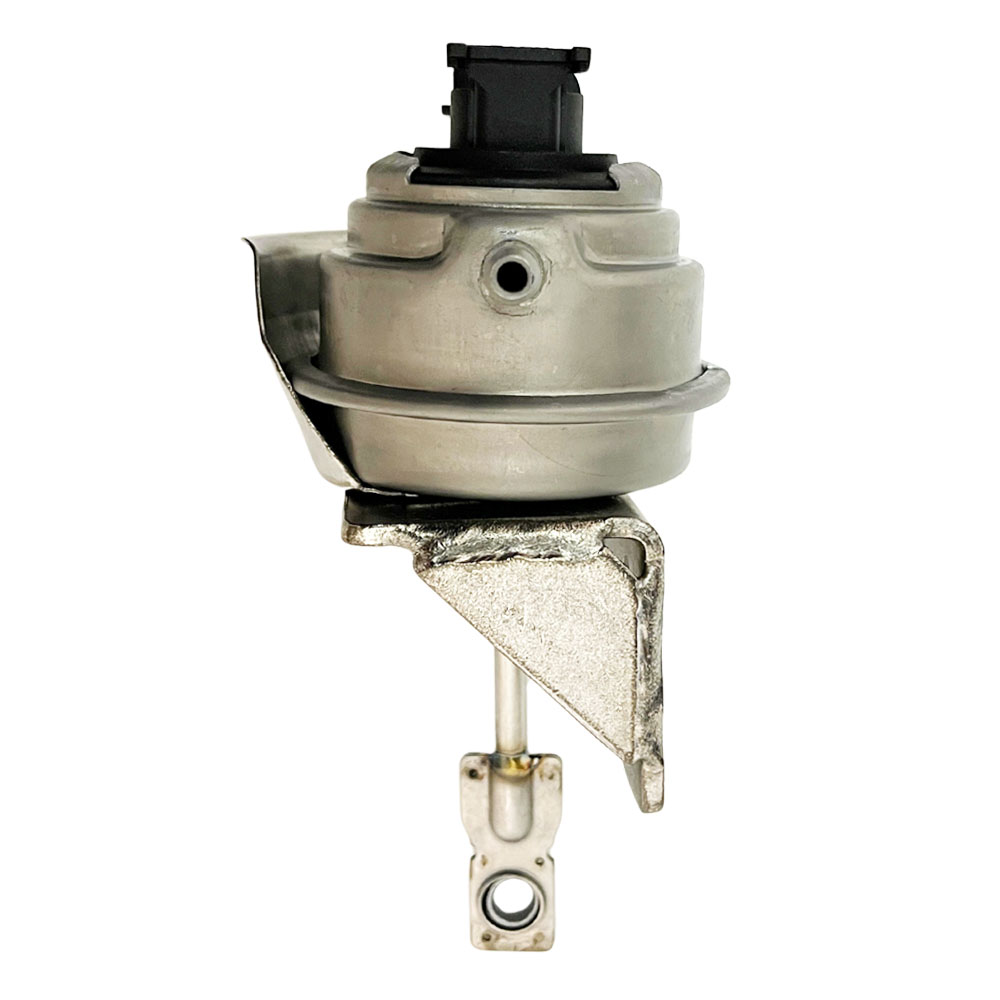

Audi 2.0 TDI vacuum actuator 794081-0051

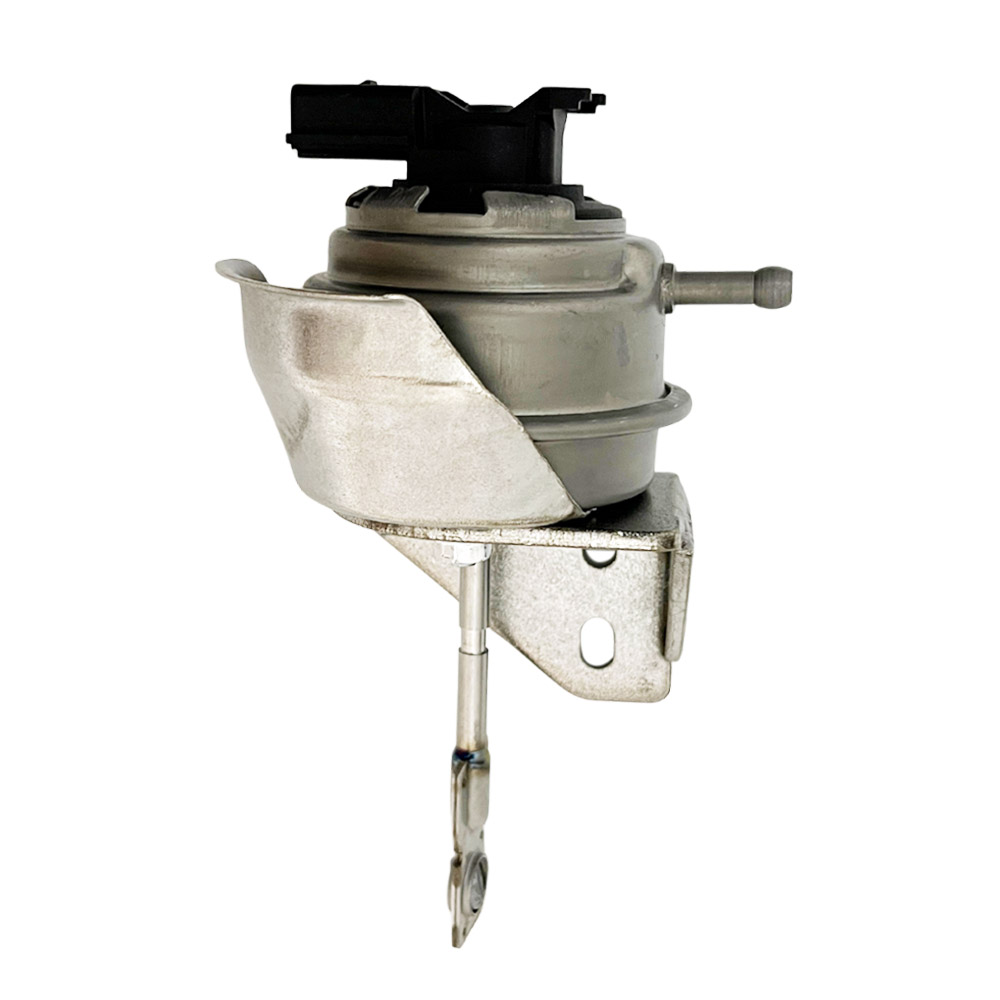

794081-51 787563-08

794081-51 Vacuum Actuator with 787563-08 Position Sensor For OEM 04L253010H, 04L253010EV

Original price was: $105.00.Current price is: $79.00.

In stock | You save: $26.00

Get your 2.0 TDI running at full power again

Replace your faulty actuator today. Order now for fast shipping! Enjoy smooth, reliable boost control.

click to see actuator realshot video

click to see vehicles fitment

SKU: PHS-GTD1449V-04L253010H-AC Categories: , , , , Tag:
Why Buy From Us
Have a Question?
Warranty & Return

Description

Quality Aftermarket Turbo 794081-51 Vacuum Actuator with 787563-08 Position Sensor

Restore precise boost control and stop limp-home behavior with this aftermarket Vacuum Actuator 794081-51 paired with the 787563-08 position sensor. Engineered as a direct fit replacement for OEM 04L253010H or 04L253010EV turbos, this actuator is a cost-effective, reliable solution for vehicles equipped with the VW EA288 2.0 TDI engine family (CUNA, CUPA, DJGA, etc.).

Key Features

  • Exact OEM Fitment

    Engineered to match factory specifications for effortless installation.

  • No Programming Required

    Pre-calibrated at the factory for hassle-free installation.

  • Cost-Effective Aftermarket Solution

    Substantially lower cost than OEM replacements without compromising performance.


Specifications

Vacuum Actuator: 794081-51, 794081-0051

Position Sensor: 787563-08, 787563-0008

794081-51

Turbo Compatibility

Turbo Model Part No. OE No.
GTD1449V 821866-5004S,
821866-0004,
821866-5002S,
821866-0002,
821866-5003S,
821866-0003 		04L253010H,
04L253010HX,
04L253010HV,
04L253010HV260,
04L253010HV280,
04L253010HV310,
04L253056P
GTD1449V 819891-5005S,
819891-0005,
819891-5 		04L253010EV310

Why Choose Our Actuator?

Tested from –40 °C to +125 °C (ISO 16750‑4), 500 h neutral salt spray (ASTM B117), and high‑acceleration shock/vibration (ISO 16750‑3), our actuator delivers OEM‑quality durability in any environment.

Temperature Resistance Test

Extreme Temperature Resistance

Complies with ISO 16750‑4 climatic loads for uninterrupted performance across the full automotive temperature range.

Salt Spray Test

Corrosion Protection

Survives 500 hours in ASTM B117 salt‑fog testing with no significant corrosion, thanks to a die‑cast aluminum housing and advanced coatings.

Shock Test

Shock & Vibration Durability

Meets ISO 16750‑3 mechanical loads standards for severe road‑impact shocks and continuous engine‑bay vibrations, keeping its stepper motor and sensor precise.

Aging Test

Accelerated Aging Test

Undergoes accelerated thermal aging (per ASTM D3045 and MIL‑STD‑202) to simulate years of operation in just days, verifying long‑term reliability and minimal performance drift.

Compatibility & Fitment

Audi

2013-2016 AUDI A3 (8V1, 8VK) 2.0 TDI with engine code CUNA; 135kW 184HP
2012- AUDI A3 (8V1, 8VK) 2.0 TDI quattro with engine code CUNA, DGCA; 135kW 184HP
2014- AUDI A3 Convertible (8V7, 8VE) 2.0 TDI with engine code CUNA; 135kW 184HP
2014- AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro with engine code CUNA, DGCA; 135kW 184HP
2014- AUDI A3 Limousine (8VS, 8VM) 2.0 TDI with engine code CUNA; 135kW 184HP
2014-2018 AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro with engine code CUNA, DGCA; 135kW 184HP
2013- AUDI A3 Sportback (8VA, 8VF) 2.0 TDI with engine code CUNA; 135kW 184HP
2013-2018 AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro with engine code CUNA, DGCA; 135kW 184HP
2015-2018 AUDI Q3 (8UB, 8UG) 2.0 TDI with engine code DFUA, CUWA; 135kW 184HP
2014-2018 AUDI Q3 (8UB, 8UG) 2.0 TDI quattro with engine code DFUA, CUWA, CYLA; 135kW 184HP
2014- AUDI TT (FV3, FVP) 2.0 TDI with engine code CUNA; 135kW 184HP
2014- AUDI TT Roadster (FV9, FVR) 2.0 TDI with engine code CUNA; 135kW 184HP

Skoda

2013- SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TDI / TDI RS 4×4 with engine code CUNA, DJGA, CUPA; 135kW 184HP
2013- SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TDI RS with engine code CUNA, DJGA, CUPA; 135kW 184HP
2014- SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TDI / TDI RS 4×4 with engine code CUNA, DJGA, CUPA; 135kW 184HP
2013- SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TDI RS with engine code CUNA, DJGA, CUPA; 135kW 184HP

Seat

2015- SEAT ALHAMBRA (710, 711) 2.0 TDI with engine code CUWA, DFMA; 135kW 184HP
2016- SEAT ALHAMBRA (710, 711) 2.0 TDI 4Drive with engine code DFMA; 135kW 184HP
2012- SEAT LEON (5F1) 2.0 TDI with engine code CUNA, DJGA, CUPA; 135kW 184HP
2013- SEAT LEON SC (5F5) 2.0 TDI with engine code CUNA, CUPA; 135kW 184HP
2013- SEAT LEON ST (5F8) 2.0 TDI with engine code CUNA, DJGA, CUPA; 135kW 184HP
2014- SEAT LEON ST (5F8) 2.0 TDI 4Drive with engine code CUNA, DJGA; 135kW 184HP
2013- SEAT LEON ST Box Body/Estate (5F8) 2.0 TDI with engine code CUNA, CUPA; 135kW 184HP
2014- SEAT LEON ST Box Body/Estate (5F8) 2.0 TDI 4Drive with engine code CUNA; 135kW 184HP

VW

2014- VW GOLF ALLTRACK VII (BA5, BV5) 2.0 TDI 4motion with engine code DJGA, DGCA, CUNA,; 135kW 184HP
2013- VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTD with engine code DJGA, DGCA, CUNA; 135kW 184HP
2015- VW GOLF VII Variant (BA5, BV5) 2.0 GTD with engine code DJGA, DGCA, CUNA; 135kW 184HP
2015- VW PASSAT (3G2, CB2) 2.0 TDI with engine code CUPA; 135kW 184HP
2015- VW PASSAT ALLTRACK (3G5, CB5) 2.0 TDI 4motion with engine code CUPA; 135kW 184HP
2015- VW PASSAT Variant (3G5, CB5) 2.0 TDI with engine code CUPA; 135kW 184HP
2015- VW SHARAN (7N1, 7N2) 2.0 TDI with engine code DFMA, CUWA; 135kW 184HP
2015-2018 VW TIGUAN (5N_) 2.0 TDI 4motion with engine code CUWA; 135kW 184HP
2015-2016 VW CC B7 (358) 2.0 TDI with engine code CUWA; 135kW 184HP
2014-2017 VW SCIROCCO III (137, 138) 2.0 TDI with engine code CUXA, CUWA; 135kW 184HP

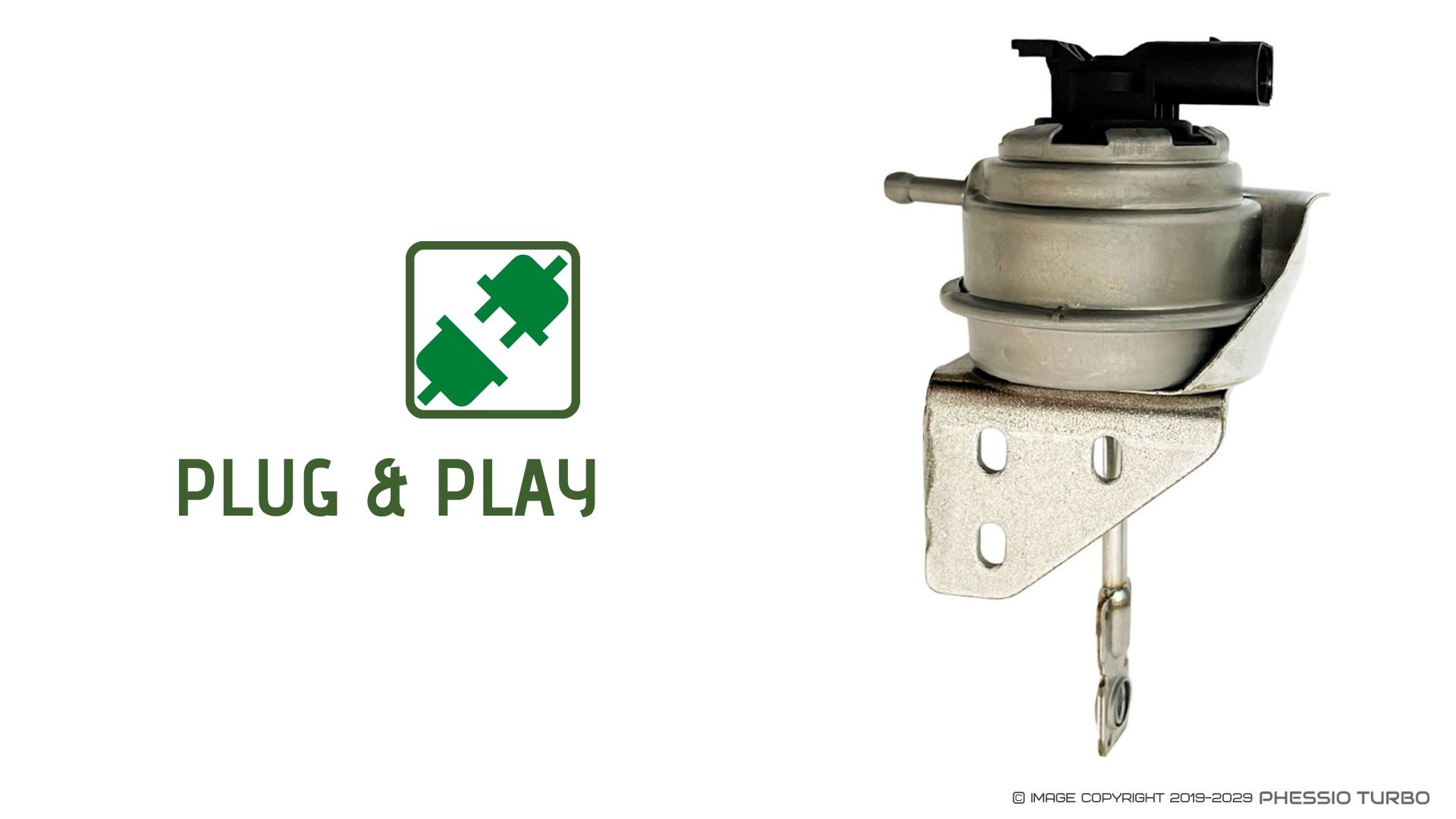

794081-51 Vacuum Actuator

PLUG & PLAY

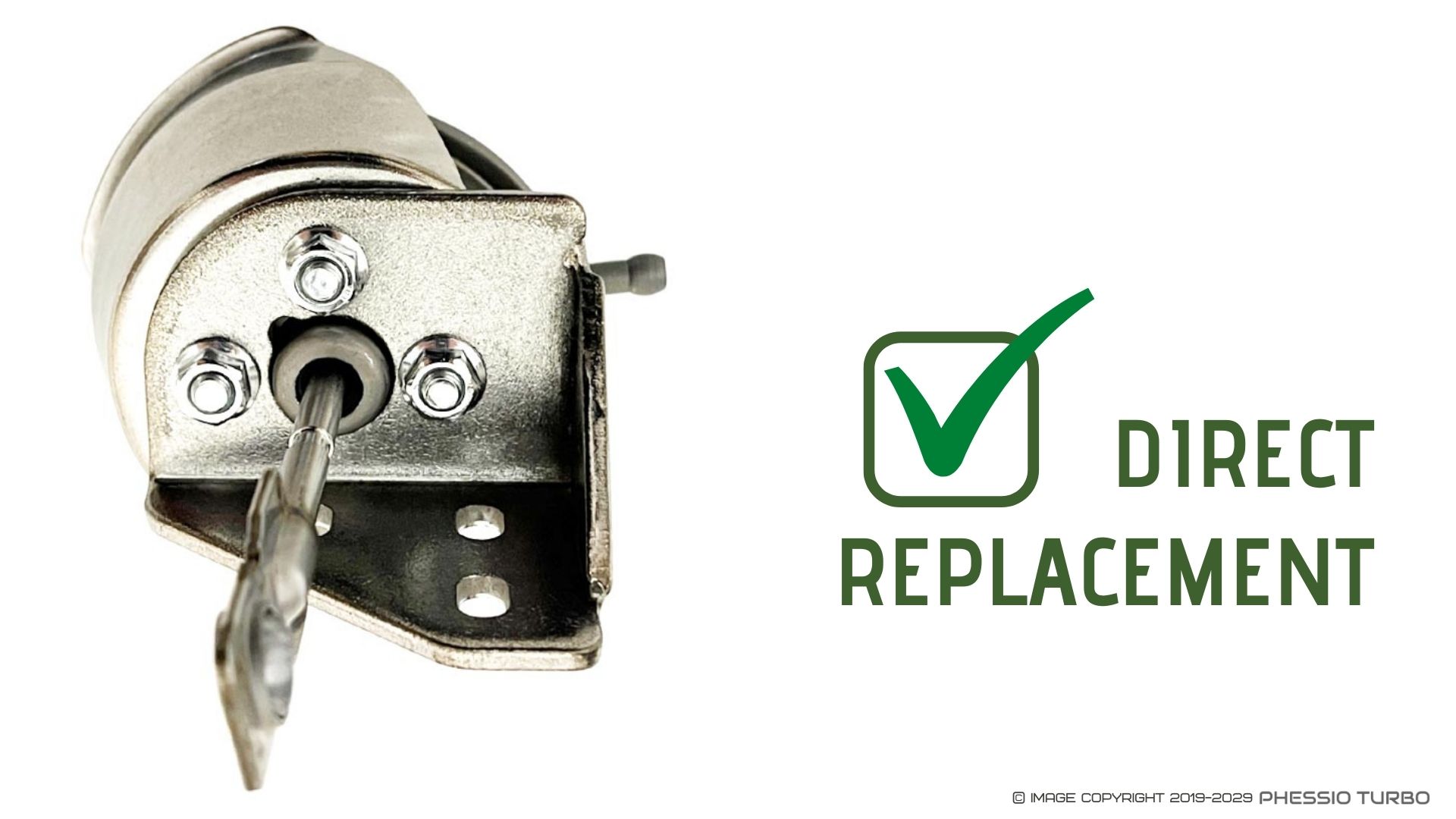

Exact fit, don’t need to do any programming, direct replacement of the original turbocharger, fast and easy installation.

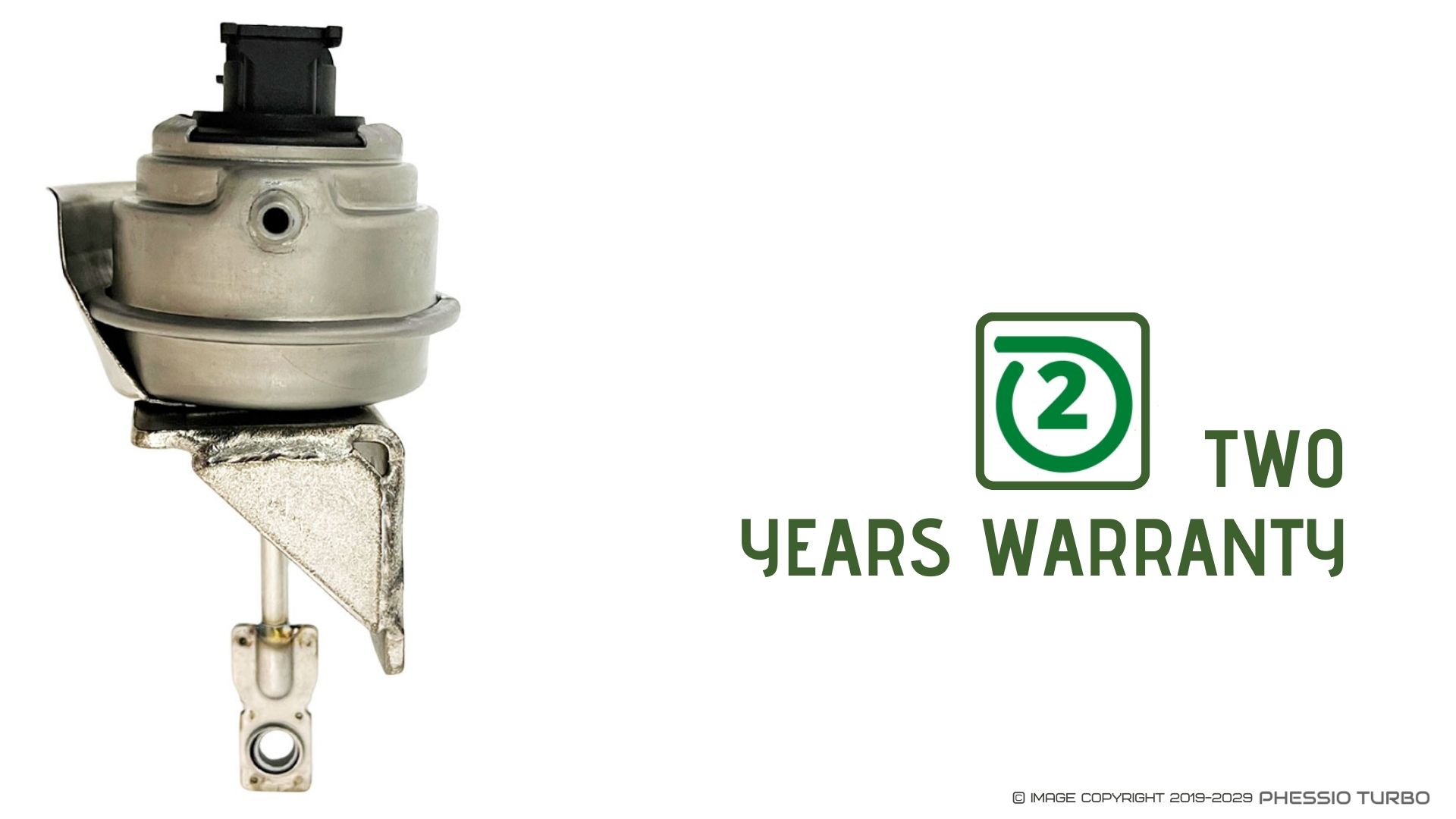

2 YEARS WARRANTY

Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.

794081-0051
Make Model Year Engine CC KW
AUDI A3 (8V1, 8VK) 2.0 TDI 2013-2016 CUNA 1968ccm 135kW 184HP
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012- CUNA, DGCA 1968ccm 135kW 184HP
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2014- CUNA 1968ccm 135kW 184HP
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2014- CUNA, DGCA 1968ccm 135kW 184HP
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2014- CUNA 1968ccm 135kW 184HP
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2014-2018 CUNA, DGCA 1968ccm 135kW 184HP
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2013- CUNA 1968ccm 135kW 184HP
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2013-2018 CUNA, DGCA 1968ccm 135kW 184HP
AUDI Q3 (8UB, 8UG) 2.0 TDI 2015-2018 DFUA, CUWA 1968ccm 135kW 184HP
AUDI TT (FV3, FVP) 2.0 TDI 2014- CUNA 1968ccm 135kW 184HP
AUDI TT Roadster (FV9, FVR) 2.0 TDI 2014- CUNA 1968ccm 135kW 184HP
SEAT ALHAMBRA (710, 711) 2.0 TDI 2015- CUWA, DFMA 1968ccm 135kW 184HP
SEAT ALHAMBRA (710, 711) 2.0 TDI 4Drive 2016- DFMA 1968ccm 135kW 184HP
SEAT LEON (5F1) 2.0 TDI 2012- CUNA, DJGA, CUPA 1968ccm 135kW 184HP
SEAT LEON SC (5F5) 2.0 TDI 2013- CUNA, CUPA 1968ccm 135kW 184HP
SEAT LEON ST (5F8) 2.0 TDI 2013- CUNA, DJGA, CUPA 1968ccm 135kW 184HP
SEAT LEON ST (5F8) 2.0 TDI 4Drive 2014- CUNA, DJGA 1968ccm 135kW 184HP
SEAT LEON ST Box Body/Estate (5F8) 2.0 TDI 2013- CUNA, CUPA 1968ccm 135kW 184HP
SEAT LEON ST Box Body/Estate (5F8) 2.0 TDI 4Drive 2014- CUNA 1968ccm 135kW 184HP
SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TDI / TDI RS 4×4 2013- CUNA, DJGA, CUPA 1968ccm 135kW 184HP
SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TDI RS 2013- CUNA, DJGA, CUPA 1968ccm 135kW 184HP
SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TDI / TDI RS 4×4 2014- CUNA, DJGA, CUPA 1968ccm 135kW 184HP
SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TDI RS 2013- CUNA, DJGA, CUPA 1968ccm 135kW 184HP
VW GOLF ALLTRACK VII (BA5, BV5) 2.0 TDI 4motion 2014- DJGA, DGCA, CUNA 1968ccm 135kW 184HP
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTD 2013- DJGA, DGCA, CUNA 1968ccm 135kW 184HP
VW GOLF VII Variant (BA5, BV5) 2.0 GTD 2015- DJGA, DGCA, CUNA 1968ccm 135kW 184HP
VW PASSAT (3G2, CB2) 2.0 TDI 2015- CUPA 1968ccm 135kW 184HP
VW PASSAT ALLTRACK (3G5, CB5) 2.0 TDI 4motion 2015- CUPA 1968ccm 135kW 184HP
VW PASSAT Variant (3G5, CB5) 2.0 TDI 2015- CUPA 1968ccm 135kW 184HP
VW SHARAN (7N1, 7N2) 2.0 TDI 2015- DFMA, CUWA 1968ccm 135kW 184HP
VW TIGUAN (5N_) 2.0 TDI 4motion 2015-2018 CUWA 1968ccm 135kW 184HP
VW CC B7 (358) 2.0 TDI 2015-2016 CUWA 1968ccm 135kW 184HP
VW SCIROCCO III (137, 138) 2.0 TDI 2014-2017 CUXA, CUWA 1968ccm 135kW 184HP

*Please make sure it is the correct actuator for your turbo before buying. You can also contact us with your VIN number and we will be more than happy to help you to verify it.
Make Model Year
AUDI A3 (8V1 / 8VK) 2.0 TDI 135kW 184HP 2013 - 2016
AUDI A3 (8V1 / 8VK) 2.0 TDI quattro 135kW 184HP 2012 - 2018
AUDI A3 Convertible (8V7 / 8VE) 2.0 TDI 135kW 184HP 2014 - 2018
AUDI A3 Convertible (8V7 / 8VE) 2.0 TDI quattro 135kW 184HP 2014 - 2018
AUDI A3 Limousine (8VS / 8VM) 2.0 TDI 135kW 184HP 2014 - 2018
AUDI A3 Limousine (8VS / 8VM) 2.0 TDI quattro 135kW 184HP 2014 - 2018
AUDI A3 Sportback (8VA / 8VF) 2.0 TDI 135kW 184HP 2013 - 2018
AUDI A3 Sportback (8VA / 8VF) 2.0 TDI quattro 135kW 184HP 2013 - 2018
AUDI Q3 (8UB / 8UG) 2.0 TDI 135kW 184HP 2015 - 2018
AUDI TT (FV3 / FVP) 2.0 TDI 135kW 184HP 2014 - 2018
AUDI TT Roadster (FV9 / FVR) 2.0 TDI 135kW 184HP 2014 - 2018
SEAT ALHAMBRA (710 / 711) 2.0 TDI 135kW 184HP 2015 - 2018
SEAT ALHAMBRA (710 / 711) 2.0 TDI 4Drive 135kW 184HP 2016 - 2018
SEAT LEON (5F1) 2.0 TDI 135kW 184HP 2012 - 2018
SEAT LEON SC (5F5) 2.0 TDI 135kW 184HP 2013 - 2018
SEAT LEON ST (5F8) 2.0 TDI 135kW 184HP 2013 - 2018
SEAT LEON ST (5F8) 2.0 TDI 4Drive 135kW 184HP 2014 - 2018
SEAT LEON ST Box Body/Estate (5F8) 2.0 TDI 135kW 184HP 2013 - 2018
SEAT LEON ST Box Body/Estate (5F8) 2.0 TDI 4Drive 135kW 184HP 2014 - 2018
SKODA OCTAVIA III (5E3 / NL3 / NR3) 2.0 TDI / TDI RS 4×4 135kW 184HP 2013 - 2018
SKODA OCTAVIA III (5E3 / NL3 / NR3) 2.0 TDI RS 135kW 184HP 2013 - 2018
SKODA OCTAVIA III Combi (5E5 / 5E6) 2.0 TDI / TDI RS 4×4 135kW 184HP 2014 - 2018
SKODA OCTAVIA III Combi (5E5 / 5E6) 2.0 TDI RS 135kW 184HP 2013 - 2018
VW CC B7 (358) 2.0 TDI 135kW 184HP 2015 - 2018
VW GOLF ALLTRACK VII (BA5 / BV5) 2.0 TDI 4motion 135kW 184HP 2014 - 2018
VW GOLF VII (5G1 / BQ1 / BE1 / BE2) 2.0 GTD 135kW 184HP 2013 - 2018
VW GOLF VII Variant (BA5 / BV5) 2.0 GTD 135kW 184HP 2015 - 2018
VW PASSAT (3G2 / CB2) 2.0 TDI 135kW 184HP 2015 - 2018
VW PASSAT ALLTRACK (3G5 / CB5) 2.0 TDI 4motion 135kW 184HP 2015 - 2018
VW PASSAT Variant (3G5 / CB5) 2.0 TDI 135kW 184HP 2015 - 2018
VW SCIROCCO III (137 / 138) 2.0 TDI 135kW 184HP 2015 - 2018
VW SHARAN (7N1 / 7N2) 2.0 TDI 135kW 184HP 2015 - 2018
VW TIGUAN (5N_) 2.0 TDI 4motion 135kW 184HP 2015 - 2018
