Description
8972089660 Isuzu 4HE1 GT2560 700716-0009 Turbo Cartridge Replacement
If your turbocharger has failed but the housing is still good, this aftermarket turbocharger cartridge is the cost-effective solution. It is a direct replacement for the OEM 8972089660 turbocharger cartridge used on the 4.8L Isuzu 4HE1 engine, commonly found in Chevrolet, GMC, and Isuzu medium-duty trucks.
Technical Specifications
Turbo Model: GT2560S, GT2560LS
Turbo Part No.: 700716-0009, 700716, 700716-5009S, 700716-1, 700716-0001, 700716-3, 700716-0003, 700716-4, 700716-0004, 700716-5, 700716-0005, 700716-6, 700716-0006, 700716-7, 700716-0007, 700716-9
Turbo OE No.: 8972089660, 8972089661, 8972089662, 8972089663, 8971894520, 8970787842
Engine: Isuzu 4HE1; 4.8L 4752ccm
Compatibility & Fitment
Chevrolet
- 1999-2003 Chevrolet W3500 Tiltmaster W3S042
- 1999-2003 Chevrolet W4500 Tiltmaster W4S042
GMC
- 1999-2003 GMC W3500 Forward W3S042
- 1999-2003 GMC W4500 Forward W4S042
- 2000-2003 GMC W5500 Forward W5R042
- 2003- GMC W5500 Forward W5S042
Chevrolet
- 1998-2003 Isuzu NPR with 4HE1 engine
- 1998-2003 Isuzu NQR with 4HE1 engine
Why Choose Our Cartridge?
Direct-fit CHRA
Easy installation into your original turbo housing.
100% Dynamically Balanced
Each cartridge undergoes rigorous balancing tests to guarantee smooth, vibration‑free operation at high RPM.
Premium Shaft and Wheel Materials
Turbine wheels are made from Inconel K418 alloy, Never use cheap K713C!
Robust Bearings & Seals
Heavy-duty oil-cooled bearings with reinforced seals for leak-free, reliable lubrication.

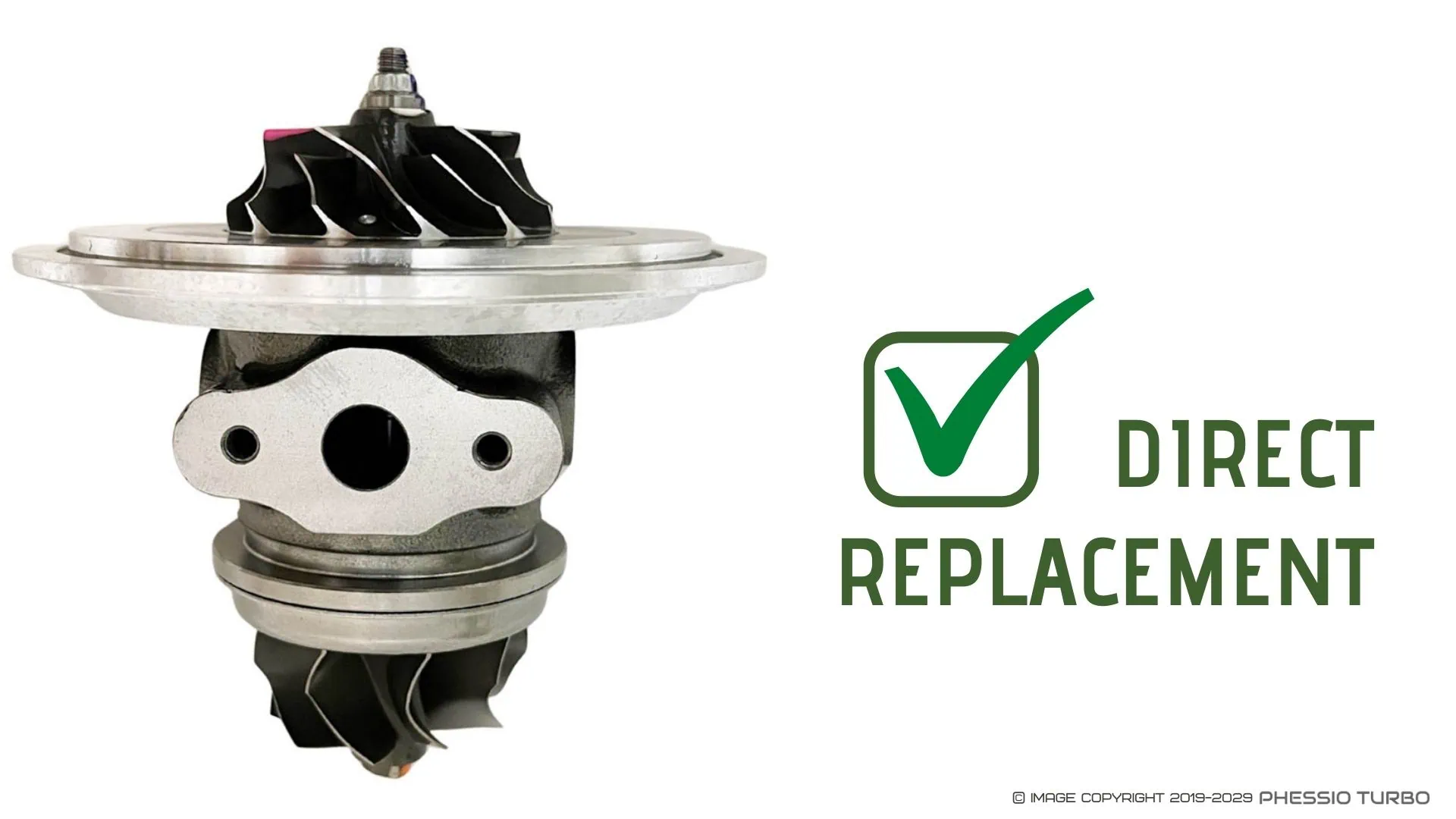

DIRECT REPLACEMENT
Exact fit, direct replacement of the original turbo cartridge, fast and easy installation, don’t need to do any change.

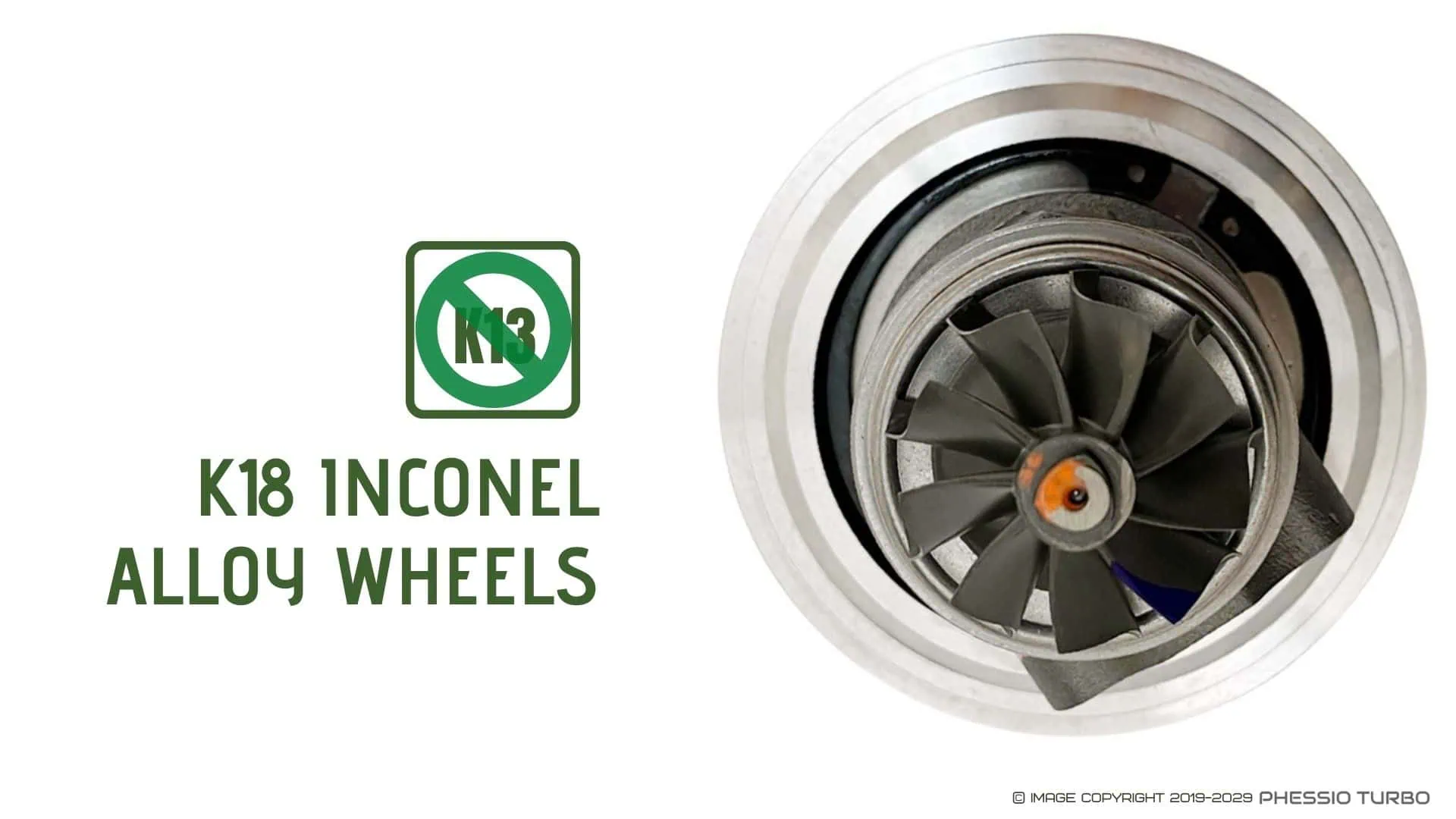

K18 INCONEL WHEELS
The turbine shaft wheels made of K418 high nickel casting alloy, more heat resistance, never use K13 Inconel alloy.
100% Balancing TEST
ISO certified factory, never compromise in balancing test, minutely inspected in the whole manufacturing process.

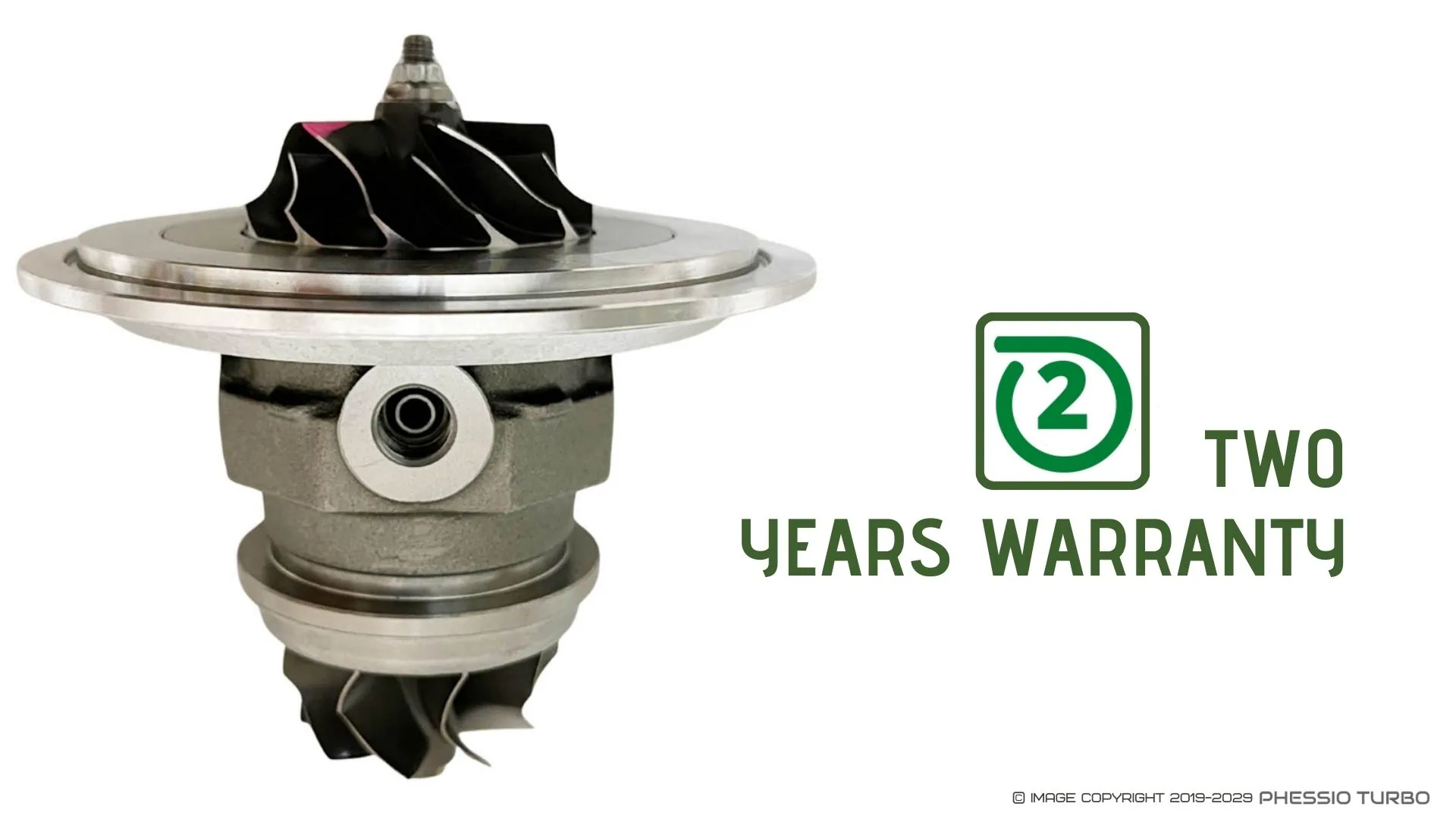

2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
