Description
Quality Aftermarket Turbo Cartridge for Toyota 2.2 D-4D 2AD-FTV 17201-26020
This aftermarket turbocharger cartridge is engineered as a direct replacement for OEM turbo part number 17201-26020, used in Toyota 2.2 D-4D diesel engines.
It is the ideal solution when the original turbo housing is still usable but the internal core has failed due to wear, oil contamination, or imbalance. Compared to replacing the entire turbocharger, this cartridge offers a significant cost saving while restoring factory-level boost performance.
Technical Specifications
Turbo Model: RHV4
Turbo Part No.: VB17, VB14, VIA10040, VAA10040, VBA10040, VCA10040, VEA10040, VFA10040, VGA10040, VHA10040, VDA10127, VCA10127, VFA10127, VEA10127, F43VAD-S0040B, F43VAD-S0040G
Turbo OE No.: 17201-26020, 17201-0R010, 17201-26021, 17201-0R011, 172010R010, 172010R011
Engine: Toyota 2AD-FTV; 2231 ccm
Compatibility & Fitment
Toyota
- 2005-2008 TOYOTA AVENSIS Saloon (_T25_) 2.2 D-4D (ADT251_, ADT251R) with 2AD-FTV engine; 110kW 150HP
- 2005-2008 TOYOTA AVENSIS Estate (_T25_) 2.2 D-4D (ADT251_, ADT251R) with 2AD-FTV engine; 110kW 150HP
- 2005-2008 TOYOTA AVENSIS (_T25_) 2.2 D-4D (ADT251_, ADT251R) with 2AD-FTV engine; 110kW 150HP
- 2005-2009 TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_) with 2AD-FTV engine; 100kW 136HP
- 2006-2012 TOYOTA RAV 4 III (_A3_) 2.2 D 4WD (ALA30_, ALA30R) with 2AD-FTV engine; 100kW 136HP
- 2005-2010 TOYOTA RAV 4 III (_A3_) 2.2 D 4WD (ALA30) with 2AD-FTV engine; 98kW 133HP
Why Choose Our Cartridge?
Direct-fit CHRA
Easy installation into your original turbo housing.
100% Dynamically Balanced
Each cartridge undergoes rigorous balancing tests to guarantee smooth, vibration‑free operation at high RPM.
Premium Shaft and Wheel Materials
Turbine wheels are made from Inconel K418 alloy, Never use cheap K713C!
Robust Bearings & Seals
Heavy-duty oil-cooled bearings with reinforced seals for leak-free, reliable lubrication.

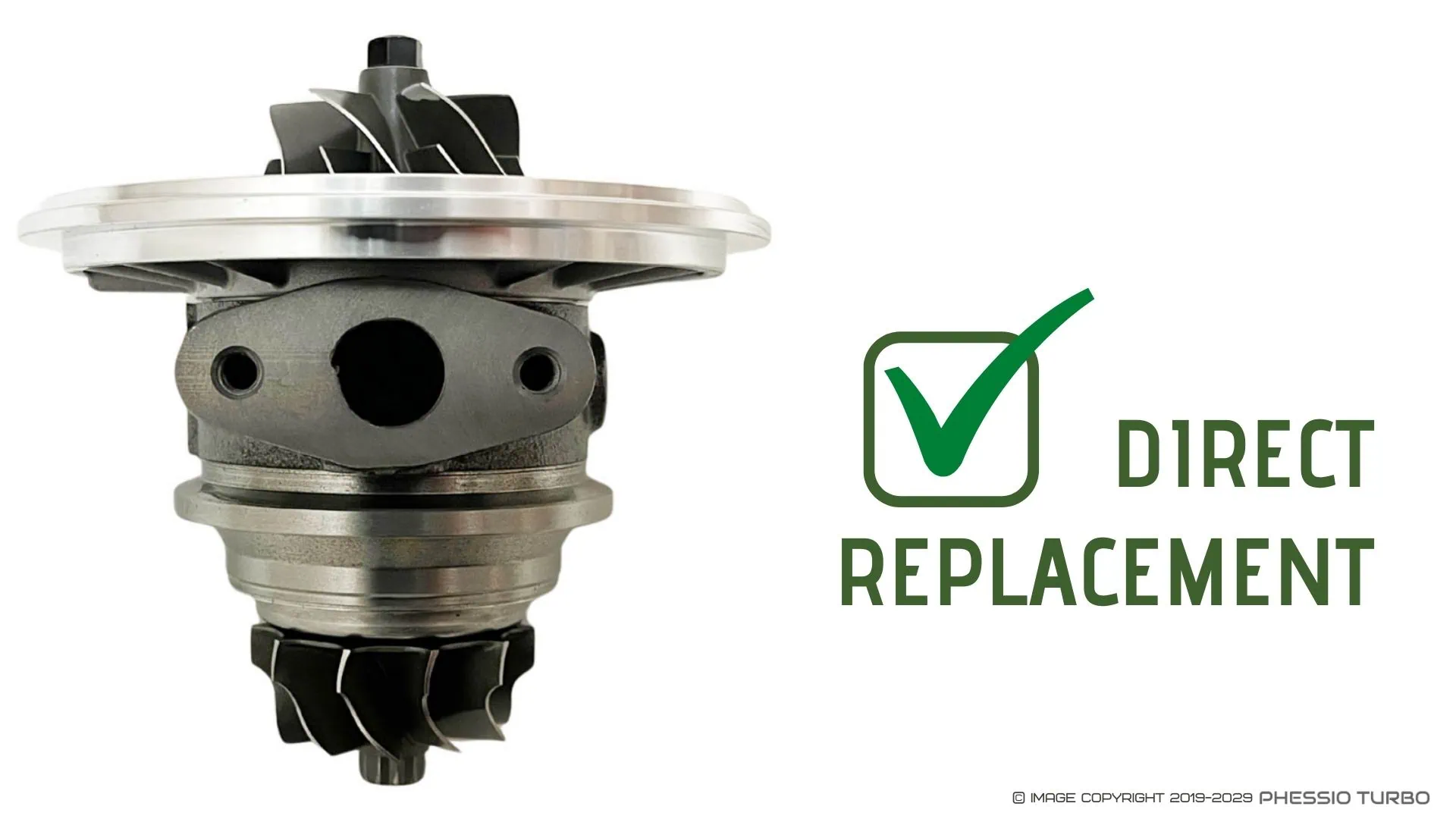

DIRECT REPLACEMENT
Exact fit, direct replacement of the original turbocharger cartridge, fast and easy installation, don’t need to do any change.

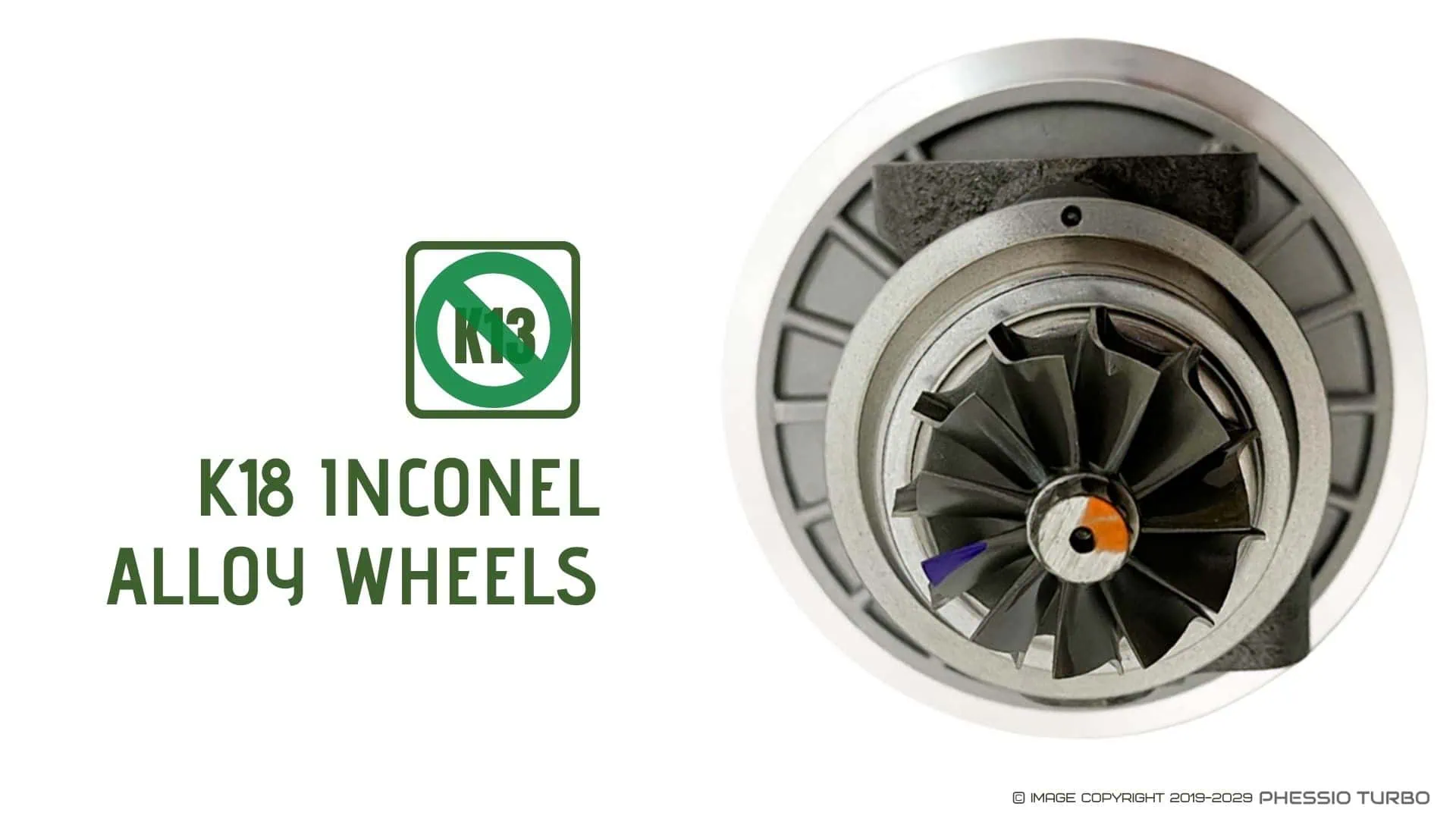

K18 INCONEL WHEELS
The turbine shaft wheels made of K418 high nickel casting alloy, more heat resistance, never use K13 Inconel alloy.
100% Balancing TEST
ISO certified factory, never compromise in balancing test, minutely inspected in the whole manufacturing process.
2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
| Make | Model | Year | Engine | CC | KW |
|---|---|---|---|---|---|
| TOYOTA | AVENSIS Saloon (_T25_) 2.2 D-4D (ADT251_, ADT251R) | 2005-2008 | 2AD-FTV | 2231ccm | 110kW 150HP |
| TOYOTA | AVENSIS Estate (_T25_) 2.2 D-4D (ADT251_, ADT251R) | 2005-2008 | 2AD-FTV | 2231ccm | 110kW 150HP |
| TOYOTA | AVENSIS (_T25_) 2.2 D-4D (ADT251_, ADT251R) | 2005-2008 | 2AD-FTV | 2231ccm | 110kW 150HP |
| TOYOTA | COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_) | 2005-2009 | 2AD-FTV | 2231ccm | 100kW 136HP |
| TOYOTA | RAV 4 III (_A3_) 2.2 D 4WD (ALA30_, ALA30R) | 2006-2012 | 2AD-FTV | 2231ccm | 100kW 136HP |
| TOYOTA | RAV 4 III (_A3_) 2.2 D 4WD (ALA30) | 2005-2010 | 2AD-FTV | 2231ccm | 98kW 133HP |
|
Please make sure it is the right cartridge for your turbo before you buy. If you are not sure if this chra will fit your turbo please contact us with your vin number and we will be more than happy to help you to verify it. |
|||||
