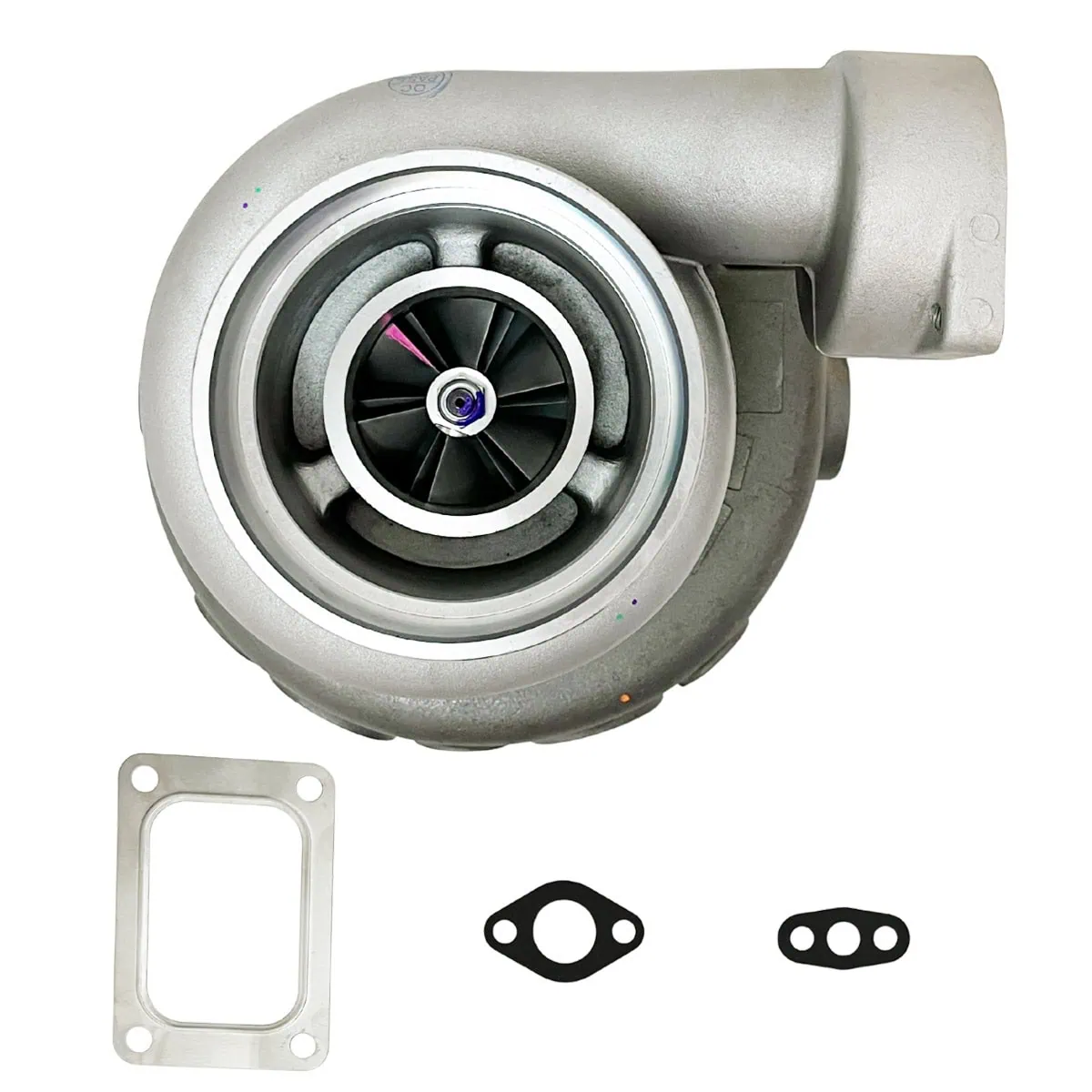

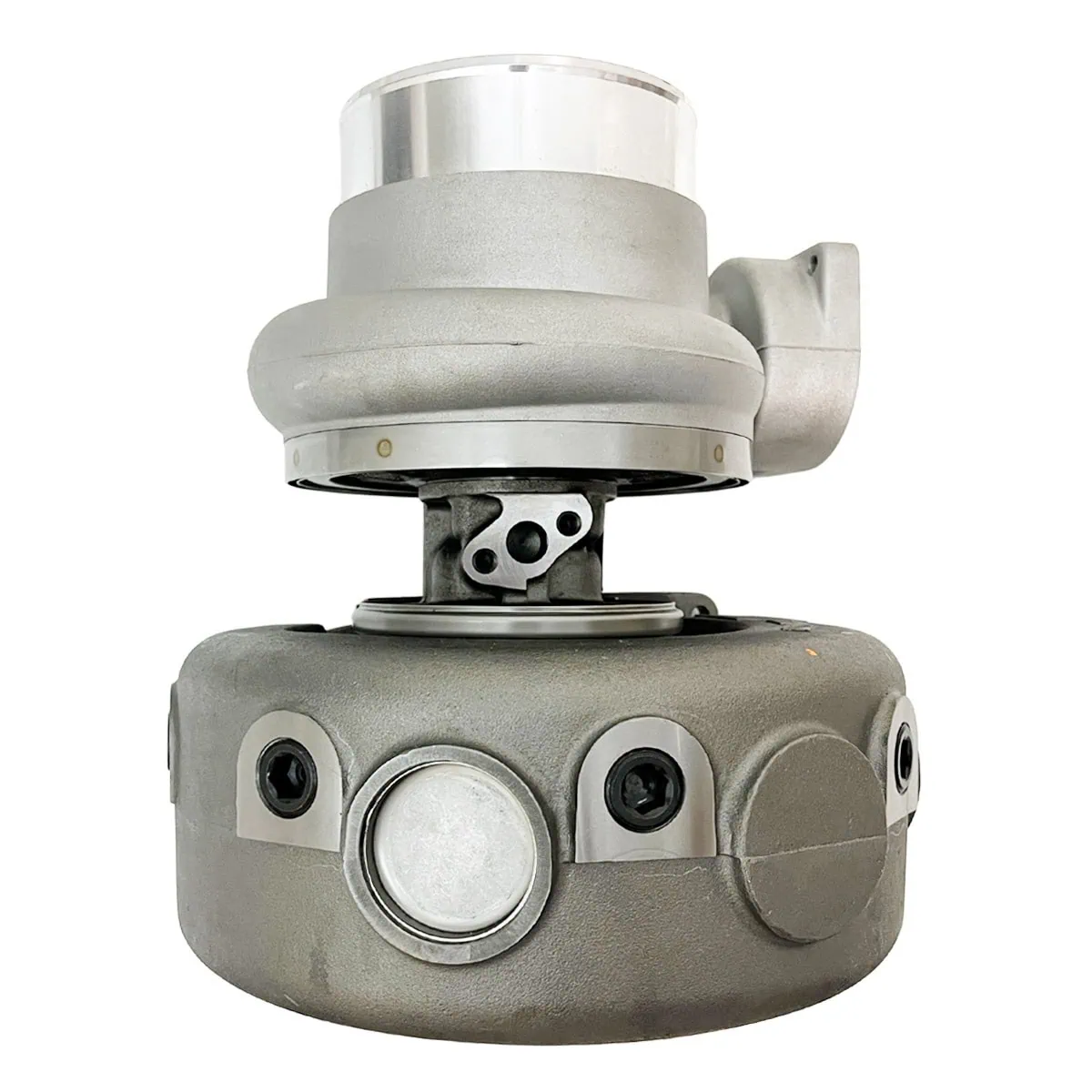

Get Reliable Boost with Our Premium Aftermarket Caterpillar 1W5285 Turbocharger
Are you looking to replace a worn 1W5285 or 0R6364 turbocharger on your engine? This high-performance aftermarket unit offers an exact-fit alternative to original equipment. It restores full engine horsepower and guarantees zero vibration through rigorous VSR balancing. It requires absolutely no core return.
Part Number Cross-Reference
To prevent ordering errors, you should verify your original part numbers. Therefore, please check the upper-level Caterpillar Turbo Groups listed below:
Caterpillar (CAT) Part Numbers:
-
New Unit P/N: 1W-5285, 1W5285 (Left Hand / LH)
-

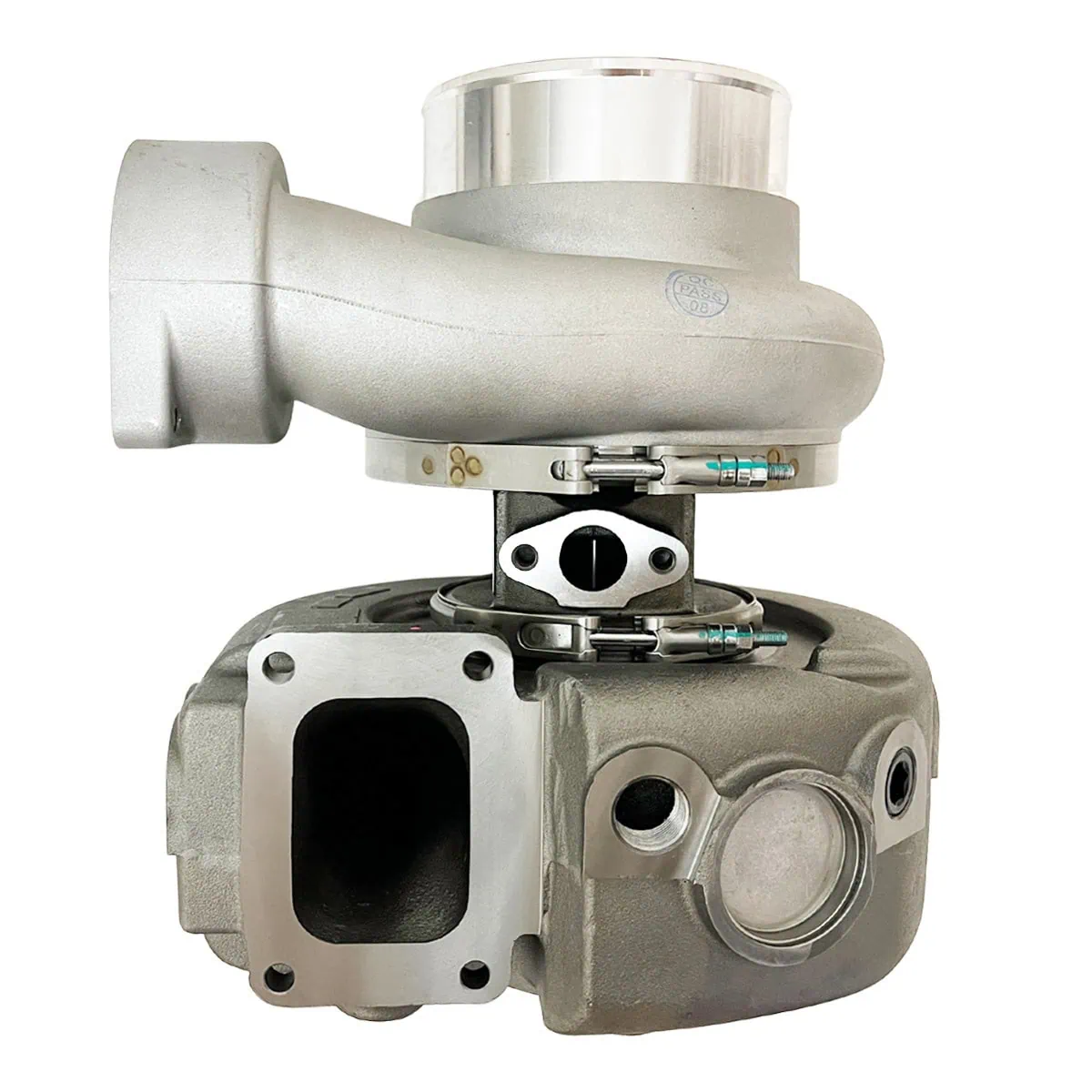

Remanufactured P/N: 0R-6364, 0R6364
-

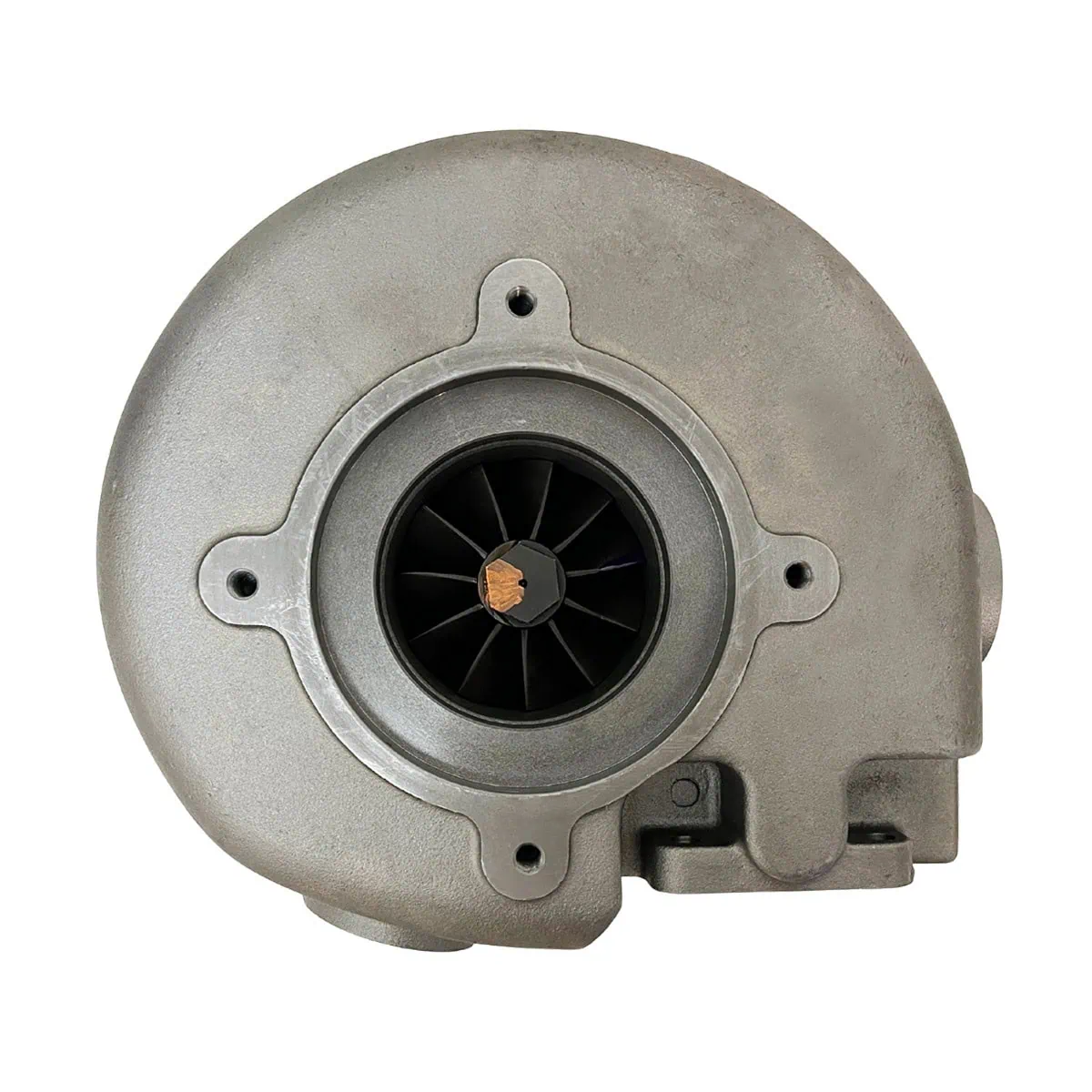

Twin Unit P/N: 1W-5286, 1W5286 (Right Hand / RH)
-
Associated Upper Turbo Groups: 4W-7482, 4W7482, 1W-5349, 1W5349, 9Y-5597, 9Y5597
Garrett Part Numbers:
-

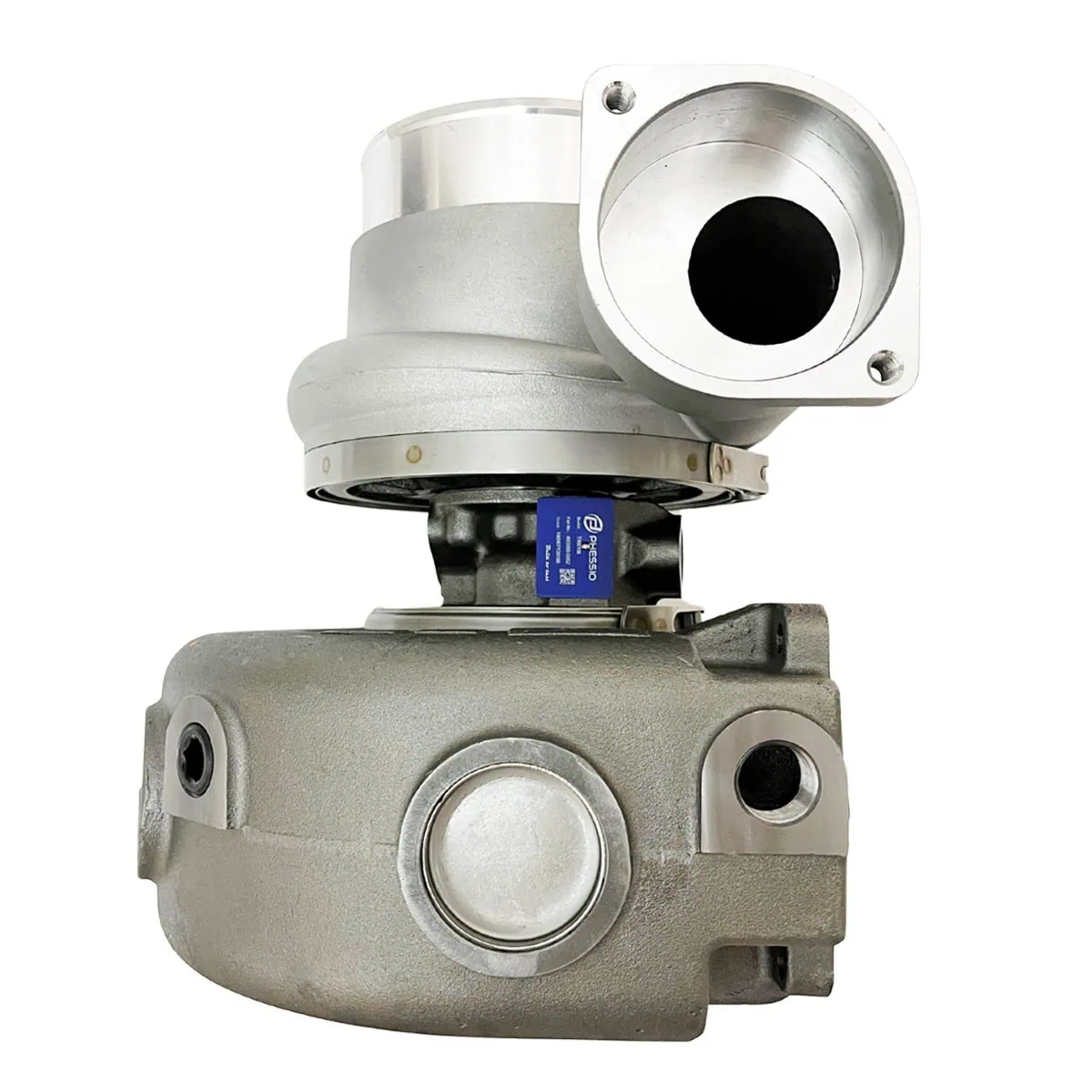

465988-5001S, 465988-0001, 465988-1
-
465988-5002S, 465988-0002, 465988-2
-
Garrett Model: TW8106, TV8102
Engine & Equipment Fitment
This unit is commonly found on heavy-duty industrial V8, V12, and V16 engines. However, you must strictly match your serial number ranges:
-

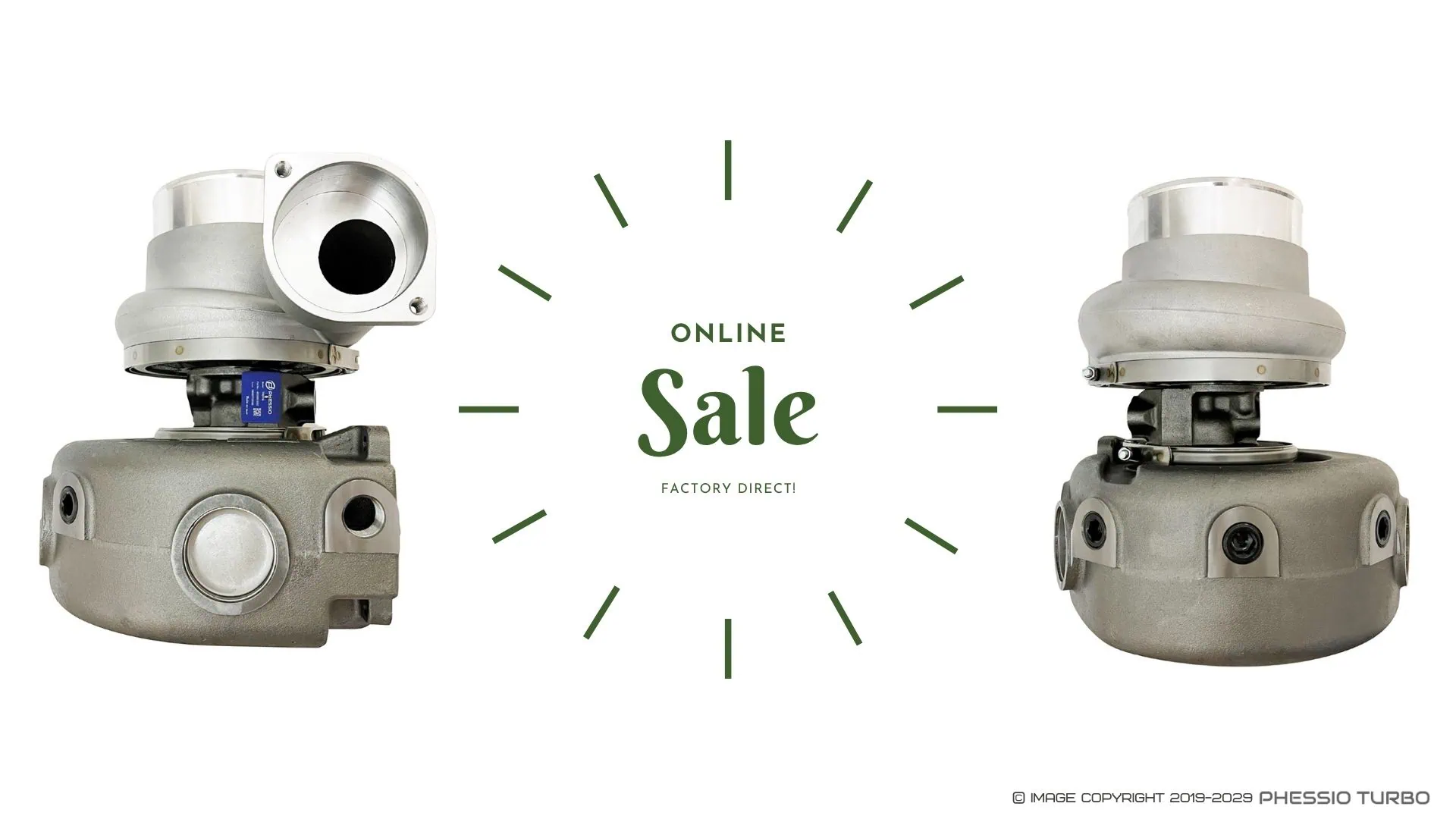

Marine Propulsion: Caterpillar 3408, 3408B, 3408C, 3412, 3508, 3508B, 3508C tugs and commercial vessels.
-

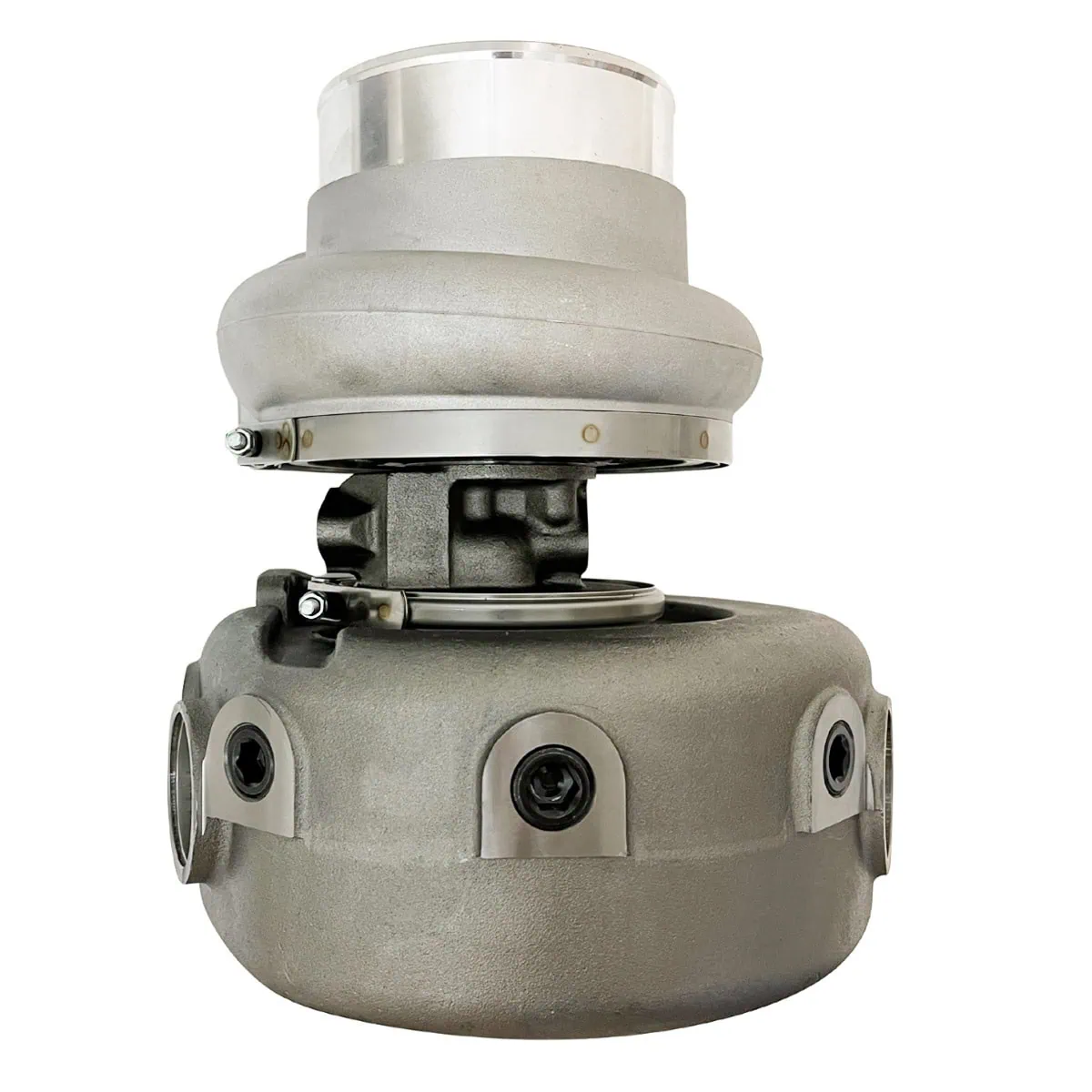

Generator Sets: Caterpillar 3508, 3512 generator sets, and 3408C backup power stations.
-
Industrial & Gas Engines: Caterpillar G3516 gas engine and 3408B industrial mining rigs.
🛠️ PRO TECH TIP FOR MECHANICS (LH / RH Universal):
Caterpillar V-configured engines utilize a dual-turbo setup. However, the left-side (1W5285) and right-side (1W5286) share the exact same internal components. These include the Cartridge (6N7960), Compressor Housing (6N7959), and Turbine Housing (6N9910).
Consequently, the only difference is the housing rotation angle. Therefore, you can easily loosen the clamps on this unit to adjust the angle for either side perfectly.
💡 100% Fitment Guarantee:
Are you unsure if this fits your specific machine? You can start a live chat with us or email us your Engine Serial Number. Our technical support team will cross-reference it immediately to confirm compatibility before you buy.
Why Choose This Turbocharger?
Exact OEM Fitment
First, the dimensions and oil ports perfectly match original factory specifications. Therefore, installation is seamless and fast.
Precision Balanced
Additionally, every single unit undergoes rigorous high-speed VSR balancing testing. As a result, this eliminates vibration completely.
Proven Reliability
Moreover, it is equipped with upgraded heavy-duty thrust bearings. Consequently, it easily withstands punishing marine environments.
Cost‑Effective Performance
Furthermore, you can save significantly over OEM pricing. Most importantly, no core return or extra charge is required.

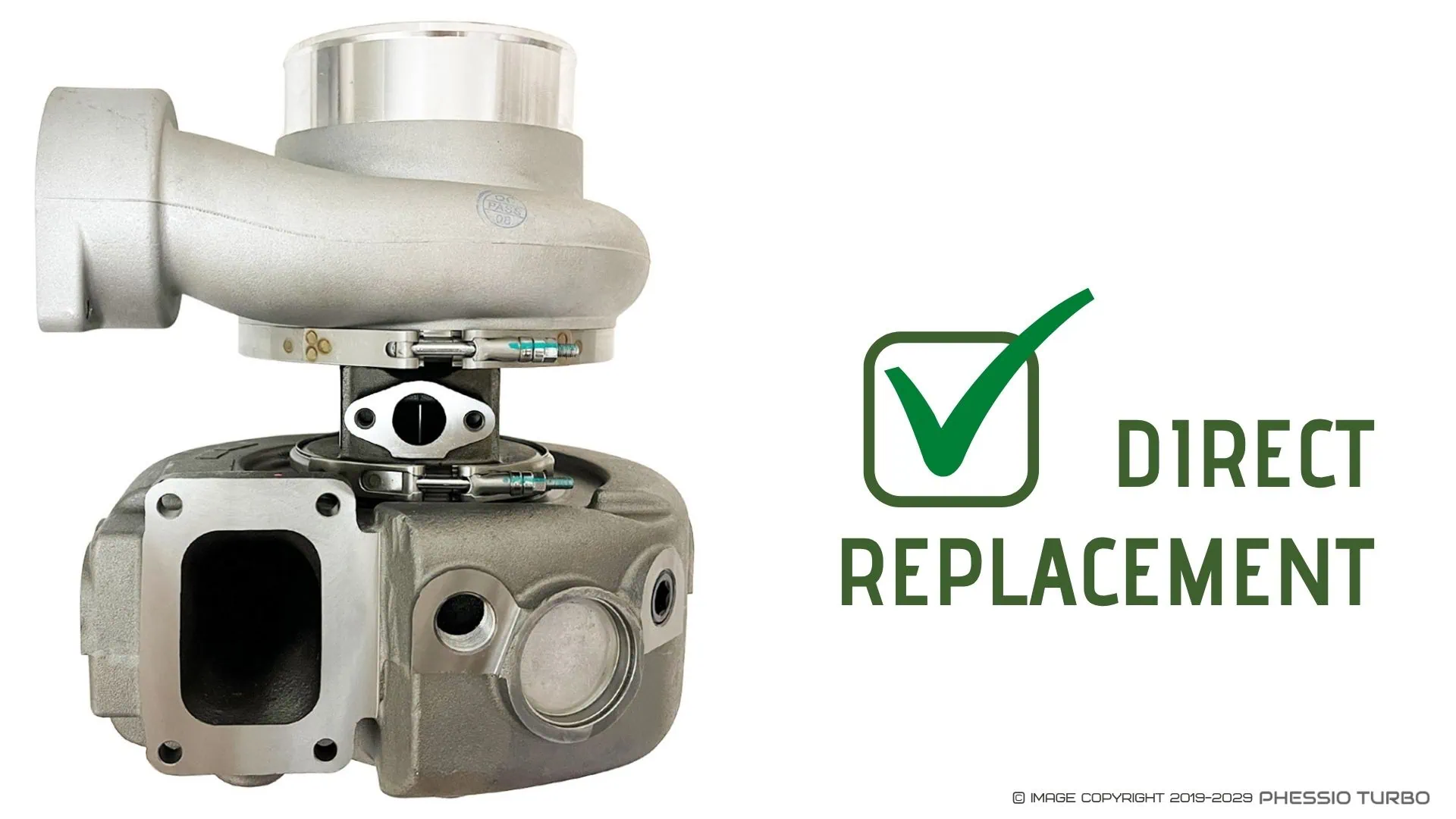

DIRECT REPLACEMENT
This unit offers an exact fit and direct replacement. Therefore, installation is fast, and you do not need any modifications.

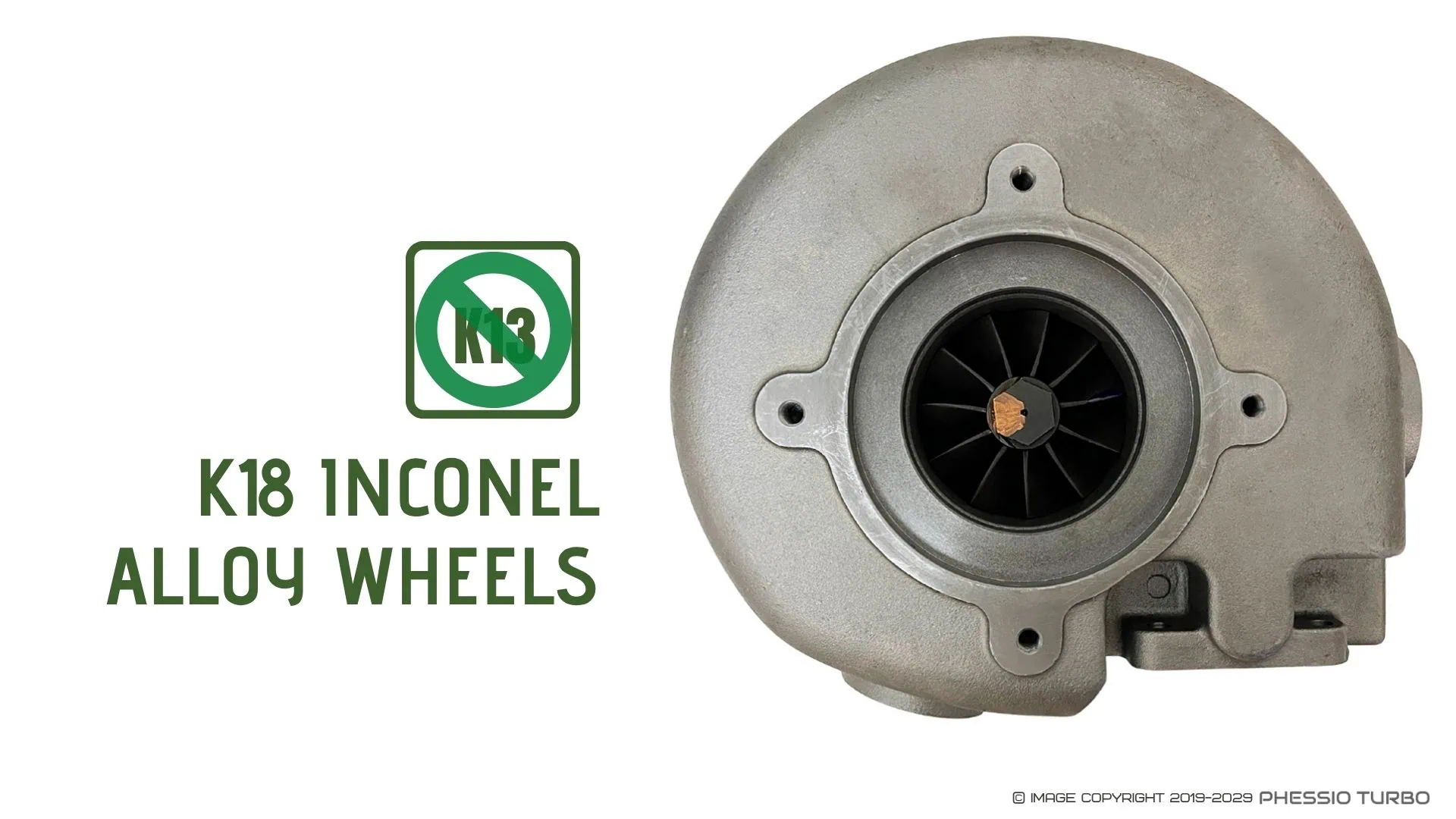

K18 INCONEL WHEELS
The turbine wheels are made of premium K418 casting alloy. Consequently, it provides superior heat resistance during heavy operations.
100% Balancing TEST
Our factory is fully ISO certified. Furthermore, every component is minutely inspected during the entire manufacturing process.

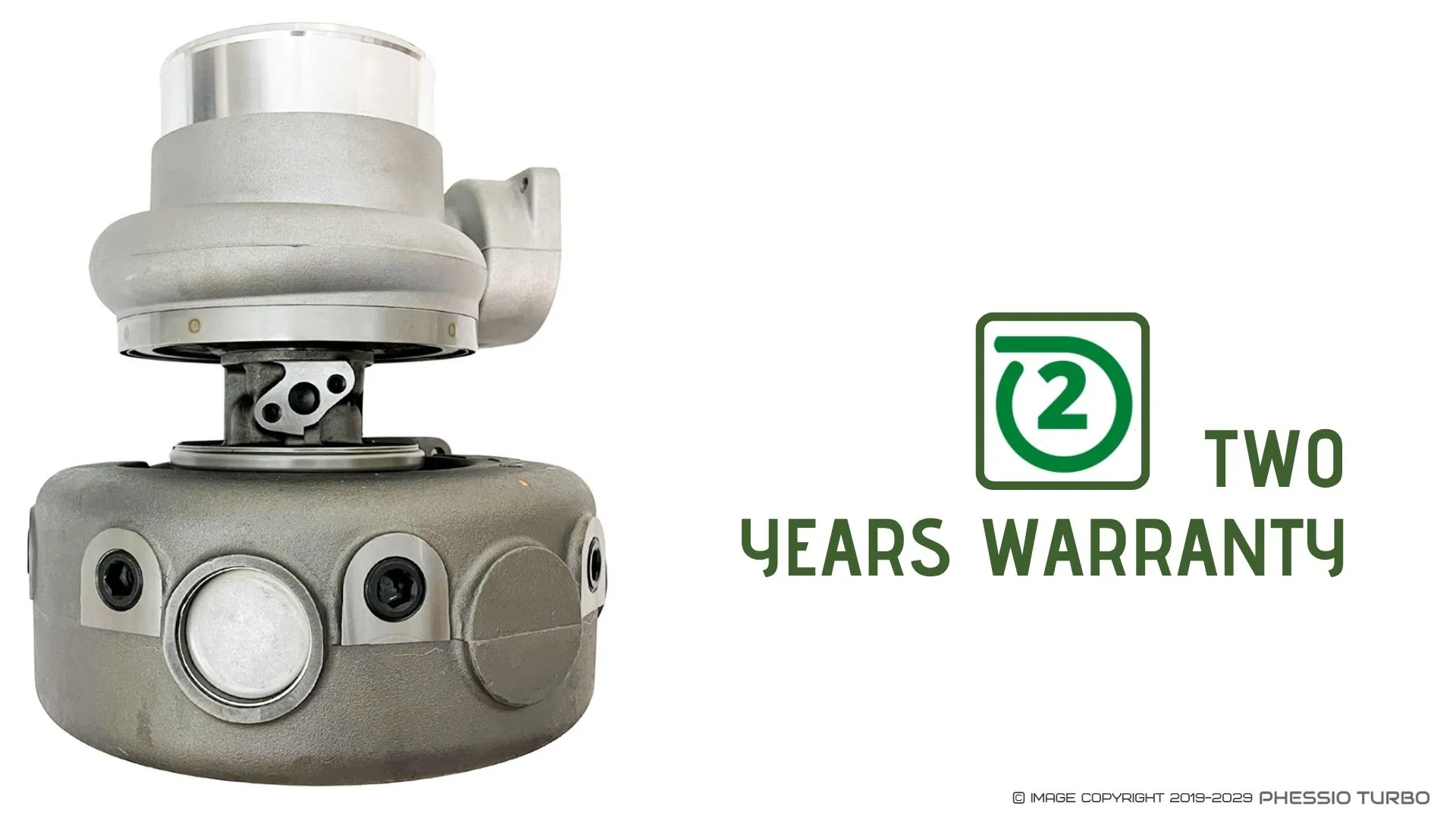

2 YEARS WARRANTY
We offer factory-direct pricing with worldwide shipping. Additionally, we back this product with an industry-leading 2-year warranty.
